5 Starr Aluminum Single & Tandem Axle Roller

RollerAluminumSingleTandem

Our AR roller trailers feature our patented I-beam frame design, which provides maximum strength and stability in lightweight, corrosion-resistant aluminum construction. They feature gutters to protect and conceal wiring and brake lines along the length of the frame as well as integrated fastener channels for axle and fender mounting minimize U-bolts straddling the frame.

Our roller system features thermal plasticized rubber (TPR) rollers that will never mar or damage your hull. Torsion axles and disc brakes are standard on all models

With a wide array of available options, our 5 STARR trailers provide the Load Rite durability and performance you’re looking for at an exceptional value.

MODELS & SPECIFICATIONS
STANDARD FEATURES
OPTIONS
GALLERY
WARRANTY & MANUALS
Find a Dealer

MODELS & SPECIFICATIONS

Share this trailer
5 Starr Aluminum Single & Tandem Axle Roller
MODELCAPACITYBOW EYE TO TRANSOM MAXIMUMBOW EYE TO TRANSOM MINIMUM# OF ROLLERSAXLESBRAKESTIRE SIZEOVERALL WIDTHBETWEEN FENDERSOVERALL LENGTHSpec Sheet
5S-AR172450902,45018'13'2010ST205/14C90"74"20' 4"PDF
5S-AR182800102T2,80019' 11"14' 6"2010ST215/14C102"82"19' 7"PDF
5S-AR183100102TB13,10019' 11"14' 6"2011ST215/14C102"82"19' 10"PDF
5S-203100102TB13,10019' 11"14' 6"2011ST215/14C102"82"21' 9"PDF
5S-AR20T4600102TB14,60019' 7"13' 6"2821, 2ST205/14C102”82”21’ 9”PDF
5S-AR22T5200102TB15,20021' 9"17' 8"4021, 2ST205/14C102”82”23’ 9”PDF
5S-AR24T6000102TB16,00023' 7"19' 10"4821, 2ST215/14C102”82”26’ 3”PDF
5S-AR26T6000102TB16,00025'23'4821, 2ST215/14C102”82”28'PDF
Patented Aluminum I-Beam Frame Read More Info

Patented Aluminum I-Beam Frame

This patented design offers many features that add functionality to a great look.  Integrated wire gutter beneath the top flange securely protects wiring and brakelines.  The captured fastener channel below offers invisible mounting points for many other different features.  Web mounted crossbars strengthen the overall frame assembly.

Find a dealer
Torsion Axles (96″ and Wider Models) Read More Info

Torsion Axles (96″ and Wider Models)

Torsion axles provide independent suspension, exceptional rigidity, corrosion resistance, and a far superior ride to any leaf spring suspension.  Available on most models.

Find a dealer
Load Rite BIAS-PLY TIRES Bias-Ply Tires Read More Info
Load Rite BIAS-PLY TIRES

Bias-Ply Tires

High quality USDOT-rated tires.  Standard on all 5 STARR, pontoon, skiff and jon models, and models 90″ wide and narrower.  Easily upgraded to radial tires at time of order.

Find a dealer
Balanced Wheels 13″ and Larger Read More Info

Balanced Wheels 13″ and Larger

CounterAct Wheel Bead Balancing is now included on all 13″ and larger wheel assemblies as a standard feature.  The wheels dynamically balance during each use.
Visit counteractbalancing.com for more information.

Find a dealer
Load Rite Trailer Disc Breaks Disc Brakes (Where Installed) Read More Info
Load Rite Trailer Disc Breaks

Disc Brakes (Where Installed)

This trailer is equipped with disc brakes (where installed).  Load Rite recommends disc brakes on all wheels where available.  Disc brakes are self-adjusting and self-cleaning and require minimal maintenance in order to continue to deliver top performance.  Follow maintenance tips in your Owners Manual for more detailed instructions.

Find a dealer
Heat-Shrunk Sealed, Concealed Wiring Read More Info

Heat-Shrunk Sealed, Concealed Wiring

Standard equipment on all trailers 17′ and longer except welded frame models.

Find a dealer
TPR (Thermal Plasticized Rubber) Roller System Read More Info

TPR (Thermal Plasticized Rubber) Roller System

Our patented TPR (Thermal Plasticized Rubber) roller system offers the most articulation in the industry, more roller to hull contact and a patented Delrin(r) roller bushing for a smooth launch and load every time.

Find a dealer
Aluminum Diamond Plate Fenders Read More Info

Aluminum Diamond Plate Fenders

A stylish design combined with extreme durability.

Find a dealer
Load Rite Optional One Piece Fenders One-piece aluminum fender Read More Info
Load Rite Optional One Piece Fenders

One-piece aluminum fender

Stylish one-piece aluminum diamond-plate fender design is featured on all tandem and triaxle boat trailers.

Find a dealer
Tongue Jack Read More Info

Tongue Jack

Tongue jacks are standard equipment on all Load Rite Elite models 90″ wide and wider, all 5 STARR models, and all UT, EQ, and CH models.  Appearance and specifications vary by application.  Tongue jacks are optional on all other models.

Find a dealer
2 Plus 3 Years Limited Warranty
Radial Tires Read More Info

Radial Tires

Smoother riding and longer wear life than many bias-ply tires.  A highly recommended upgrade.  Available for 13″ and larger wheels.

Find a dealer
Load Rite Split Star aluminum wheel Aluminum Wheels Read More Info
Load Rite Split Star aluminum wheel

Aluminum Wheels

A stylish option available with bias-ply or radial tires for most models in 12″, 13″, 14″, 15″ and 16″ sizes.

Find a dealer
LED Lighting (76″ and under models) Read More Info

LED Lighting (76″ and under models)

LED lights offer far greater reliability than incandescent fixtures.  Long-lasting and waterproof design make these lights ideal for any trailer application.

Find a dealer
Heat Shrunk Wire Splices Read More Info

Heat Shrunk Wire Splices

Upgrade from standard silicone gel-filled connectors to heat-shrunk connections for a little extra peace of mind.

Find a dealer
Brakes on All Axles Read More Info

Brakes on All Axles

Important Safety Issue – Brake Requirements

Brake laws vary by state and require dealers to sell trailers that comply with the brake laws of the state where the trailer will be registered.  This is a very important safety issue.  For full information contact the appropriate state Motor Vehicle Department.  As always, Load Rite recommends brakes on all axles where available.



Find a dealer
Electric Over Hydraulic Brakes Read More Info

Electric Over Hydraulic Brakes

EOH brakes offer electric in-cab control of standard hydraulic disc brakes.  Requires in-cab controller and 7-pin round electrical connection to the tow vehicle.

Find a dealer
KODIAK STAINLESS STEEL DISC BRAKES Kodiak Stainless Steel Disc Brakes * Read More Info
KODIAK STAINLESS STEEL DISC BRAKES

Kodiak Stainless Steel Disc Brakes *

Optional Kodiak stainless steel brakes available for most 14″, 15″ and 16″ wheel applications. Can be used with surge and electric over hydraulic actuators.*

May be unavailable on some axle combinations.  Check with Load Rite before ordering.

Find a dealer
Stainless Brakelines Read More Info

Stainless Brakelines

A valuable upgrade to any trailer, but especially those to see service in coastal regions with salt water exposure.

Find a dealer
Vault® Hubs Read More Info

Vault® Hubs

Vault® – The VAULT® “Hybrid Lubrication System” uses a semi-fluid oil in a pressurized chamber to give you the ultimate in wheel bearing lubrication and protection. At ambient temperatures the oil is thick with a viscosity approaching grease. As the bearing temperature rises during towing, the VAULT’s Hybrid Oil thins out replenishing the bearings with lubricant and dissipating heat. No inspection, no maintenance and no service required. *Vault® and Kodiak® cannot be combined.

Consult a dealer to confirm application.

Find a dealer
Load Rite Trailer Drop Tongue Jack Drop-Style Tongue Jack Read More Info
Load Rite Trailer Drop Tongue Jack

Drop-Style Tongue Jack

An upgraded jack that provides greater capacities and fast setup with no need to swivel.

Find a dealer
Stainless Main Frame Hardware Read More Info

Stainless Main Frame Hardware

Available for most Load Rite Elite LR-AB, LR-ASKI, LR-AR, LR-AS and 5 STARR 5S-AC aluminum models.  Not available for galvanized frame models.

Find a dealer
Load Rite SWING TONGUE Swing Tongue Read More Info
Load Rite SWING TONGUE

Swing Tongue

Applications are limited by trailer capacity and tongue length.  Not available on models exceeding 6,000 lbs. capacity.  Consult with a dealer.

Find a dealer

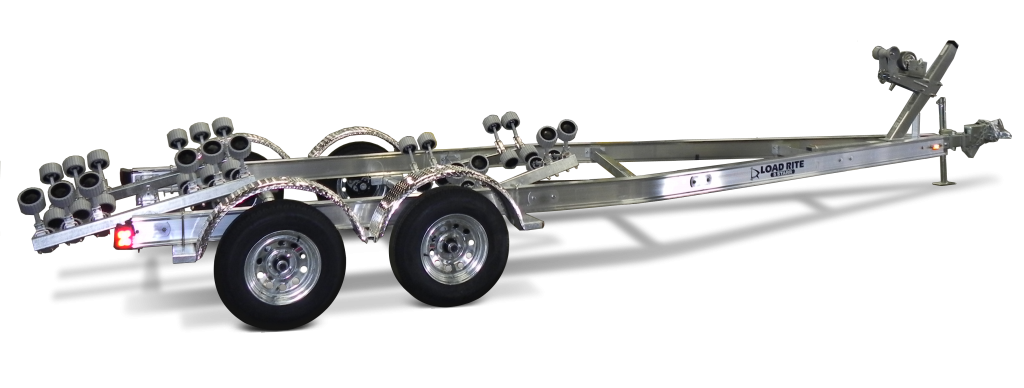

5S-AR22T5200102TB1

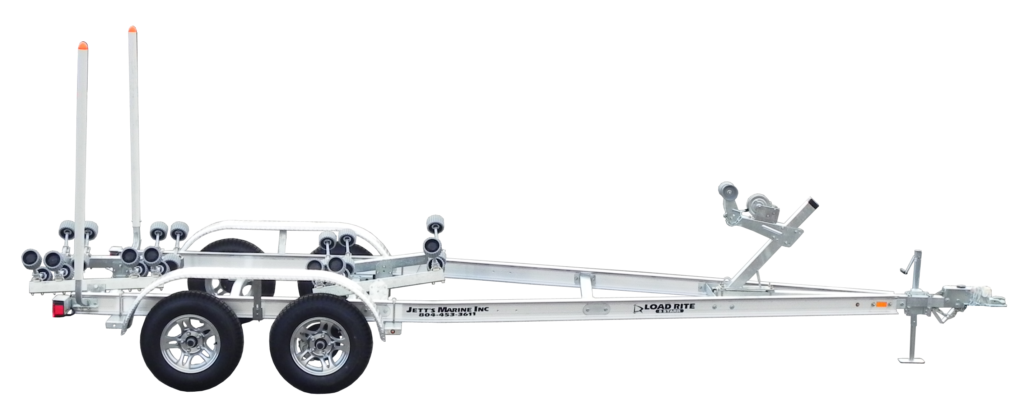

5S-AR20T4600102TB1

Shown with optional wheels and sideguides.
