Load Rite Single Axle Roller

Load Rite Galvanized Single Axle Roller

RollerGalvanizedSingle

Load Rite roller trailers feature a heavy-duty galvanized steel frame built to deliver years of reliable performance in salt, mud and  fresh water while remaining free of corrosion. Patented tubular construction provides exceptional strength and shrouds wiring and brake lines from damage during use.

Load Rite’s patented roller system offers the greatest articulation in the industry, yielding superior roller-to-hull contact over the competition through the clever design of patented pivoting aluminum extrusions. The Thermal Plasticized Rubber (TPR) roller surface will not mar hulls. The patented Delrin® roller bushing assures a smooth load and launch every time.

With a wealth of standard features including torsion axles, disc brakes (where brakes are indicated), LED lights, and a long list of available options, your Load Rite will deliver exceptional durability and performance, season after season.

All of these features are backed by the industry leading Load Rite 2 + 3 Warranty.

Specifications subject to change without notice.  Not responsible for publishing errors.

MODELS & SPECIFICATIONS
STANDARD FEATURES
OPTIONS
GALLERY
WARRANTY & MANUALS
Find a Dealer

MODELS & SPECIFICATIONS

Share this trailer
Load Rite Galvanized Single Axle Roller
MODELCAPACITYSUSPENSIONBOW EYE TO TRANSOM MAXIMUMBOW EYE TO TRANSOM MINIMUM# OF ROLLERSAXLESBRAKESTIRE SIZEOVERALL WIDTHBETWEEN FENDERSOVERALL LENGTHSpec Sheet
16150076DRWT1,500TORSION17' 3"12' 6"16104.80x12C76"62"18' 10"PDF
16170076DRWT1,700TORSION17' 3"12' 6"1610ST175/13C76"62"18' 10"PDF
17150076DRWT1,500TORSION17' 3"12'1610ST175/13C76"62"19' 10"PDF
17220090RT2,200TORSION17' 6"14' 1"1610ST175/13C90"72"18' 11"PDF
17245090RT2,450TORSION17' 6"14' 1"1610, 1ST205/14C90"72"18' 11"PDF
17266090RT2,660TORSION17' 6"14' 1"1610, 1ST205/14C90"72"18' 11"PDF
18150076DRWT1,500TORSION18' 1"12'1610ST175/13C76"62"20' 7"PDF
18240096RT2,400Torsion17' 9"14' 11"1610, 1ST205/R14C96"77"20' 2"PDF
18280096RT2,800Torsion17' 9"14' 11"2010ST205/R14C96"77"20' 2"PDF
18310096RTB3,100Torsion17' 9"14' 11"2011ST215/R14C96"77"20' 2"PDF
18360096RTB3,600Torsion17' 9"14' 11"2411ST225/R15D96"77"20' 2"PDF
20280096RT2,800Torsion19' 1"17' 9"2010ST205/R14C96"77"21' 5"PDF
20310096RTB3,100Torsion19' 5"17' 9"2011ST215/R14C96"77"22' 2"PDF
21360096RTB3,600Torsion20' 10"16' 7"2411ST225/R15D96"77"22' 11"PDF
Galvanized Steel Frame Read More Info

Galvanized Steel Frame

Tubular structural steel, fully hot dip galvanized, provides the ultimate finish for any boat trailer.  Tubular design shrouds wiring and brake lines from damage.  All machining and welding is performed before galvanizing, so there are no surfaces left unprotected from a boat trailer’s ultimate enemy: corrosion.

Find a dealer
Torsion Axles Read More Info

Torsion Axles

Torsion axles provide independent suspension, exceptional rigidity, corrosion resistance, and a far superior ride to any leaf spring suspension.  Available on most models.

Find a dealer
Greaseable Hubs Read More Info

Greaseable Hubs

Trailer with peace of mind knowing that you’ve inspected the condition and topped off the lubricant level in each hub of your trailer.

Find a dealer
Load Rite Trailer Disc Breaks Disc Brakes (Where Installed) Read More Info
Load Rite Trailer Disc Breaks

Disc Brakes (Where Installed)

This trailer is equipped with disc brakes (where installed).  Load Rite recommends disc brakes on all wheels where available.  Disc brakes are self-adjusting and self-cleaning and require minimal maintenance in order to continue to deliver top performance.  Follow maintenance tips in your Owners Manual for more detailed instructions.

Find a dealer
Load Rite BIAS-PLY TIRES Bias-Ply Tires Read More Info
Load Rite BIAS-PLY TIRES

Bias-Ply Tires

High quality USDOT-rated tires.  Standard on all 5 STARR, pontoon, skiff and jon models, and models 90″ wide and narrower.  Easily upgraded to radial tires at time of order.

Find a dealer
Radial Tires (96″ and Wider Models) Read More Info

Radial Tires (96″ and Wider Models)

Tow smoother, quieter, and farther with radial tires installed on your trailer.  Original equipment on most Load Rite Elite models.  Optional on all pontoon and skiff / jon models, trailers 90″ wide and narrower, and all 5 STARR models.

Find a dealer
DOT Rated Tires and Lighting Read More Info

DOT Rated Tires and Lighting

All Load Rite original equipment tires and lighting components are fully DOT approved.

Find a dealer
Balanced Wheels 13″ and Larger Read More Info

Balanced Wheels 13″ and Larger

CounterAct Wheel Bead Balancing is now included on all 13″ and larger wheel assemblies as a standard feature.  The wheels dynamically balance during each use.
Visit counteractbalancing.com for more information.

Find a dealer
Aluminum Diamond Plate Fenders Read More Info

Aluminum Diamond Plate Fenders

A stylish design combined with extreme durability.

Find a dealer
LED Lighting (90″ and Wider Models) Read More Info

LED Lighting (90″ and Wider Models)

LED lights offer far greater reliability than incandescent fixtures.  Long-lasting and waterproof design make these lights ideal for any trailer application.

Find a dealer
Heat-Shrunk Sealed, Concealed Wiring Read More Info

Heat-Shrunk Sealed, Concealed Wiring

Standard equipment on all trailers 17′ and longer except welded frame models.

Find a dealer
THERMAL PLASTICIZED ROLLER Thermal Plasticized Roller (TPR) Read More Info
THERMAL PLASTICIZED ROLLER

Thermal Plasticized Roller (TPR)

TPR (Thermal Plasticized Rubber) rollers are smooth-rolling, non-marking and wear like polyurethane.  Yellow rollers are standard on Load Rite Elite models while 5 STARR models feature the same material colored gray.

Find a dealer
Fully Articulated TPR Roller System Read More Info

Fully Articulated TPR Roller System

These highly adjustable roller sets feature a smooth rolling core and a soft and supple TPR (Thermo Plasticized Rubber) outer layer that combine to baby a boat’s hull.  The rugged extruded aluminum frame allow the assembly to pivot side to side as well as fore and aft.  The individual roller sets can be adjusted laterally along the main I-beam to custom fit roller position for each hull.

Find a dealer
Tongue Jack (17′ and Longer Models) Read More Info

Tongue Jack (17′ and Longer Models)

Tongue jacks are standard equipment on all Load Rite Elite models 90″ wide and wider, all 5 STARR models, and all UT, EQ, and CH models.  Appearance and specifications vary by application.  Tongue jacks are optional on all other models.

Find a dealer
Winch Read More Info

Winch

A winch is standard equipment on all boat and PWC models.  Capacity and features vary by application.

Find a dealer
Winch Stand Read More Info

Winch Stand

Standard equipment on all boat and PWC models.  Specifications vary by applicaton.

Find a dealer
NMMA / NATM Certified Read More Info

NMMA / NATM Certified

Each year Load Rite trailers undergo a detailed inspection process in order to earn the right to proudly display this certification on products we manufacture.

Find a dealer
2 Plus 3 Years Coupler to Taillight Warranty Read More Info

2 Plus 3 Years Coupler to Taillight Warranty

Load Rite’s premiere warranty exclusive to our Elite line of trailers.

Find a dealer
Spare Tire and Carrier Read More Info

Spare Tire and Carrier

The most important option to consider, every trailer should have a spare tire readily available.  Consult dealer for recommended bracket for individual application.

Find a dealer
Radial Tires (90″ and under models) Read More Info

Radial Tires (90″ and under models)

Smoother riding and longer wear life than many bias-ply tires.  A highly recommended upgrade.

Find a dealer
Load Rite Split Star aluminum wheel Aluminum Wheels Read More Info
Load Rite Split Star aluminum wheel

Aluminum Wheels

A stylish option available with bias-ply or radial tires for most models in 12″, 13″, 14″, 15″ and 16″ sizes.

Find a dealer
KODIAK STAINLESS STEEL DISC BRAKES Kodiak Stainless Steel Disc Brakes * Read More Info
KODIAK STAINLESS STEEL DISC BRAKES

Kodiak Stainless Steel Disc Brakes *

Optional Kodiak stainless steel brakes available for most 14″, 15″ and 16″ wheel applications. Can be used with surge and electric over hydraulic actuators.*

May be unavailable on some axle combinations.  Check with Load Rite before ordering.

Find a dealer
Stainless Brakelines Read More Info

Stainless Brakelines

A valuable upgrade to any trailer, but especially those to see service in coastal regions with salt water exposure.

Find a dealer
Electric Over Hydraulic Brakes Read More Info

Electric Over Hydraulic Brakes

EOH brakes offer electric in-cab control of standard hydraulic disc brakes.  Requires in-cab controller and 7-pin round electrical connection to the tow vehicle.

Find a dealer
Vault® Hubs Read More Info

Vault® Hubs

Vault® – The VAULT® “Hybrid Lubrication System” uses a semi-fluid oil in a pressurized chamber to give you the ultimate in wheel bearing lubrication and protection. At ambient temperatures the oil is thick with a viscosity approaching grease. As the bearing temperature rises during towing, the VAULT’s Hybrid Oil thins out replenishing the bearings with lubricant and dissipating heat. No inspection, no maintenance and no service required. *Vault® and Kodiak® cannot be combined.

Consult a dealer to confirm application.

Find a dealer
LED Lighting (76″ and under models) Read More Info

LED Lighting (76″ and under models)

LED lights offer far greater reliability than incandescent fixtures.  Long-lasting and waterproof design make these lights ideal for any trailer application.

Find a dealer
Tongue Jack (76″ wide and under models) Read More Info

Tongue Jack (76″ wide and under models)

Tongue jacks are recommended on all trailers.  Appearance and specifications vary by application.  Tongue jacks are optional on all models where not original equipment.

Find a dealer
Load Rite Trailer Drop Tongue Jack Drop-Style Tongue Jack Read More Info
Load Rite Trailer Drop Tongue Jack

Drop-Style Tongue Jack

An upgraded jack that provides greater capacities and fast setup with no need to swivel.

Find a dealer
Load Rite SWING TONGUE Swing Tongue Read More Info
Load Rite SWING TONGUE

Swing Tongue

Applications are limited by trailer capacity and tongue length.  Not available on models exceeding 6,000 lbs. capacity.  Consult with a dealer.

Find a dealer
102″ Overall Width (96″ and Wider Models) Read More Info

102″ Overall Width (96″ and Wider Models)

Add extra width to standard 96″ wide trailers.

Find a dealer

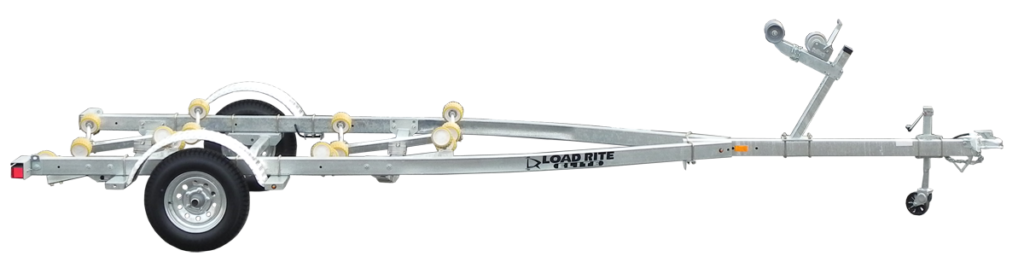

17220090RT

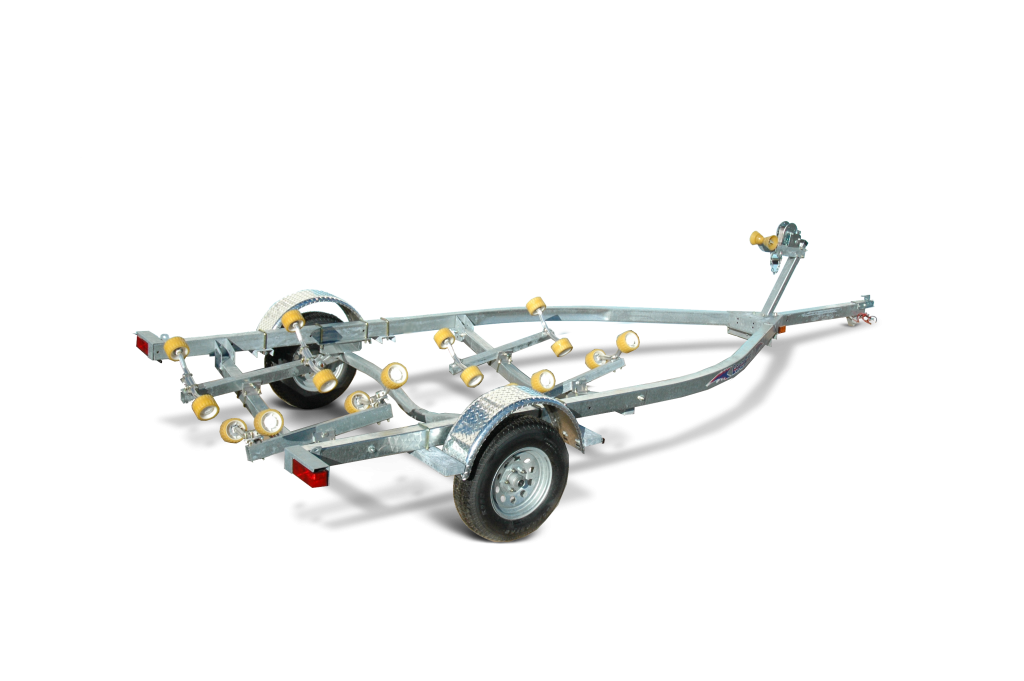

18240096RT

Adjustable I-beam roller assembly

Rollers offset on bracket to avoid trim tab.
