5 STARR Galvanized Tandem Axle Roller

RollerGalvanizedTandem/Tri-AxleTandem

Our 5 STARR tandem roller trailers feature a heavy-duty galvanized steel frame designed to resist corrosion through years of performance in the salt, mud and wet conditions that come with marine operation. Its patented tubular construction provides exceptional strength and shrouds wiring and brake lines from damage during use.

Galvanized steel frames, galvanized torsion axles, disc brakes, and LED lights are standard on all models.  Our thermal plasticized rubber (TPR) rollers provide easy launching and loading without marring or damaging your hull.

With a wide range of available options, our 5 STARR trailers provide the Load Rite durability and performance you want at an exceptional value.

All of these features are backed by the industry leading Load Rite / 5 STARR 2 + 3 Warranty.

Specifications subject to change without notice.  Not responsible for publishing errors.

MODELS & SPECIFICATIONS
STANDARD FEATURES
OPTIONS
GALLERY
WARRANTY & MANUALS
Find a Dealer

MODELS & SPECIFICATIONS

Share this trailer
5 STARR Galvanized Tandem Axle Roller
MODELCAPACITYBOW EYE TO TRANSOM MAXIMUMBOW EYE TO TRANSOM MINIMUMAXLES# OF ROLLERSBRAKESTIRE SIZEOVERALL WIDTHBETWEEN FENDERSOVERALL LENGTHSpec Sheet
5S-22T3800102TG13,80020' 9"15' 10"2241, 2ST175/13C102"82"24' 3"PDF
5S-22T4400102TG14,40020' 9"15' 10"2281, 2ST205/14C102"82"24' 3"PDF
5S-22T4700102TG14,70020' 9"15' 10"2321, 2ST205/14C102"82"24' 3"PDF
5S-22T5000102TG15,00020' 9"15' 10"2321, 2ST205/14C102 "82"24' 3"PDF
5S-22T5400102TG15,40020' 9"15' 10"2361, 2ST215/14C102"82"24' 3"PDF
5S-24T5000102TG15,00023' 6"18' 4"2321, 2ST205/14C102"82"26' 10"PDF
5S-24T5400102TG15,40024' 2"18' 10"2361, 2ST215/41C102"82"27' 4"PDF
5S-25T6000102TG16,00025'19'2401, 2ST215/14C102"82"28'PDF
5S-25T6400102TG16,40024'18' 10"2561, 2ST205/15D102"82"27'PDF
5S-26T6600102TG16,60024' 7”19' 4"2561, 2ST205/15D102"82"29' 6"PDF
5S-26T7700102TG17,70024' 7”19' 4"2601, 2ST225/15D102"82"29' 6"PDF
5S-28T8000102TG28,00025' 8”22' 11"2642ST225/15D102"82"30' 7"PDF
Galvanized Steel Frame Read More Info

Galvanized Steel Frame

Tubular structural steel, fully hot dip galvanized, provides the ultimate finish for any boat trailer.  Tubular design shrouds wiring and brake lines from damage.  All machining and welding is performed before galvanizing, so there are no surfaces left unprotected from a boat trailer’s ultimate enemy: corrosion.

Find a dealer
Torsion Axles Read More Info

Torsion Axles

Torsion axles provide independent suspension, exceptional rigidity, corrosion resistance, and a far superior ride to any leaf spring suspension.  Available on most models.

Find a dealer
Greaseable Hubs Read More Info

Greaseable Hubs

Trailer with peace of mind knowing that you’ve inspected the condition and topped off the lubricant level in each hub of your trailer.

Find a dealer
Disc Brakes (Where Installed) Read More Info

Disc Brakes (Where Installed)

This trailer is equipped with disc brakes (where installed).  Load Rite recommends disc brakes on all wheels where available.  Disc brakes are self-adjusting and self-cleaning and require minimal maintenance in order to continue to deliver top performance.  Follow maintenance tips in your Owners Manual for more detailed instructions.

Find a dealer
Load Rite BIAS-PLY TIRES Bias-Ply Tires Read More Info
Load Rite BIAS-PLY TIRES

Bias-Ply Tires

High quality USDOT-rated tires.  Standard on all 5 STARR, pontoon, skiff and jon models, and models 90″ wide and narrower.  Easily upgraded to radial tires at time of order.  Includes KENDACARE – LOADSTAR TIRE ROADSIDE ASSISTANCE PROGRAM.

Find a dealer
Balanced Wheels 13″ and Larger Read More Info

Balanced Wheels 13″ and Larger

CounterAct Wheel Bead Balancing is now included on all 13″ and larger wheel assemblies as a standard feature.  The wheels dynamically balance during each use.
Visit counteractbalancing.com for more information.

Find a dealer
LED Lighting Read More Info

LED Lighting

LED lights offer far greater reliability than incandescent fixtures.  Long-lasting and waterproof design make these lights ideal for any trailer application.

Find a dealer
Heat-Shrunk Sealed, Concealed Wiring Read More Info

Heat-Shrunk Sealed, Concealed Wiring

Standard equipment on all trailers 17′ and longer except welded frame models.

Find a dealer
5 STARR ROLLERS 5 Starr Rollers Read More Info
5 STARR ROLLERS

5 Starr Rollers

High quality, smooth rolling TPR rollers mounted to galvanized steel arms.

Find a dealer
Load Rite Optional One Piece Fenders One-piece aluminum fender Read More Info
Load Rite Optional One Piece Fenders

One-piece aluminum fender

Stylish one-piece aluminum diamond-plate fender design is featured on all tandem and triaxle boat trailers.

Find a dealer
Tongue Jack Read More Info

Tongue Jack

Tongue jacks are standard equipment on all Load Rite Elite models 90″ wide and wider except two-place PWC models, all 5 STARR models, and all UT, EQ, and CH models.  Appearance and specifications vary by application.  Tongue jacks are optional on all other models.

Find a dealer
NMMA / NATM Certified Read More Info

NMMA / NATM Certified

Each year Load Rite trailers undergo a detailed inspection process in order to earn the right to proudly display this certification on products we manufacture.

Find a dealer
2 Plus 3 Years Limited Warranty
placeholder KendaCare – LoadStar® Tire Roadside Assistance Program Read More Info
placeholder

KendaCare – LoadStar® Tire Roadside Assistance Program

Click here for more information from Americana Tire.

Find a dealer
Radial Tires Read More Info

Radial Tires

Smoother riding and longer wear life than many bias-ply tires.  A highly recommended upgrade.  Available for 13″ and larger wheels.

Find a dealer
Load Rite Split Star aluminum wheel Aluminum Wheels Read More Info
Load Rite Split Star aluminum wheel

Aluminum Wheels

A stylish option available with bias-ply or radial tires for most models in 12″, 13″, 14″, 15″ and 16″ sizes.

Find a dealer
Brakes on All Axles Read More Info

Brakes on All Axles

Important Safety Issue – Brake Requirements

Brake laws vary by state and require dealers to sell trailers that comply with the brake laws of the state where the trailer will be registered.  This is a very important safety issue.  For full information contact the appropriate state Motor Vehicle Department.  As always, Load Rite recommends brakes on all axles where available.



Find a dealer
Electric Over Hydraulic Brakes Read More Info

Electric Over Hydraulic Brakes

EOH brakes offer electric in-cab control of standard hydraulic disc brakes.  Requires in-cab controller and 7-pin round electrical connection to the tow vehicle.

Find a dealer
KODIAK STAINLESS STEEL DISC BRAKES Stainless Steel Disc Brakes Read More Info
KODIAK STAINLESS STEEL DISC BRAKES

Stainless Steel Disc Brakes

Optional stainless steel brakes available for most 14″, 15″ and 16″ wheel applications. Can be used with surge and electric over hydraulic actuators.*

May require optional axle installation.  Check with your local dealer before ordering.

Find a dealer
Carpeted Skirted Fender Read More Info

Carpeted Skirted Fender

Skirted fenders protect the hull finish in two ways.  First, the carpet facing the hull help protect from fender contact while loading and unloading.  Second, it protects the hull from road debris picked up by the tires.  Two valuable precautions for a treasured friend.  Optional on most models with aluminum fenders as standard equipment.

Some models require galvanized fender step to accommodate this option.

Find a dealer
Load Rite Trailer Drop Tongue Jack Drop-Style Tongue Jack Read More Info
Load Rite Trailer Drop Tongue Jack

Drop-Style Tongue Jack

An upgraded jack that provides greater capacities and fast setup with no need to swivel.

Find a dealer
Load Rite SWING TONGUE Swing Tongue Read More Info
Load Rite SWING TONGUE

Swing Tongue

Applications are limited by trailer capacity and tongue length.  Not available on models exceeding 6,000 lbs. capacity.  Consult with a dealer.

Find a dealer
Stainless Brakelines Read More Info

Stainless Brakelines

A valuable upgrade to any trailer, but especially those to see service in coastal regions with salt water exposure.

Find a dealer
Independent Bow Stop Read More Info

Independent Bow Stop

Adjustable, galvanized steel, Independent Bow Stop Assembly.  Telescopic post, 2×6″ wooden carpeted wedge pivots to adapt to bow angle.  Mounts to the tongue.  Useful as a forward stop for boats with a high bow, bow pulpit or windlass that could interfere with normal winchstand operation.

Find a dealer
Rubber Fenders Read More Info

Rubber Fenders

Rubber fenders are intended for use on dealer yard trailers.  Yard trailers need the flexibility to adapt to many different hull shapes without imparting any damage in the process.  Rubber fenders minimize the possibility of damage should the fender contact the boat hull.

Find a dealer

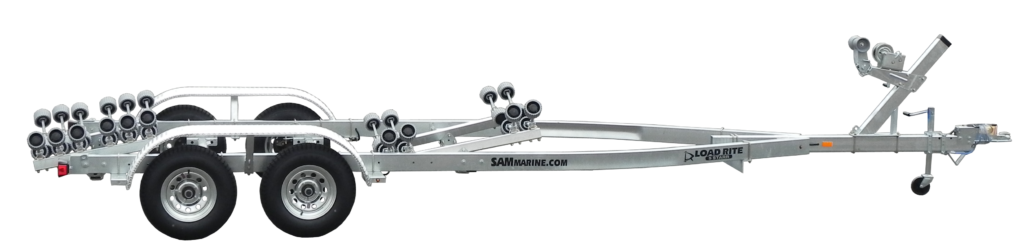

5S-25T6000TG1

5S-22T4400TG1

5S-22T5000TG1

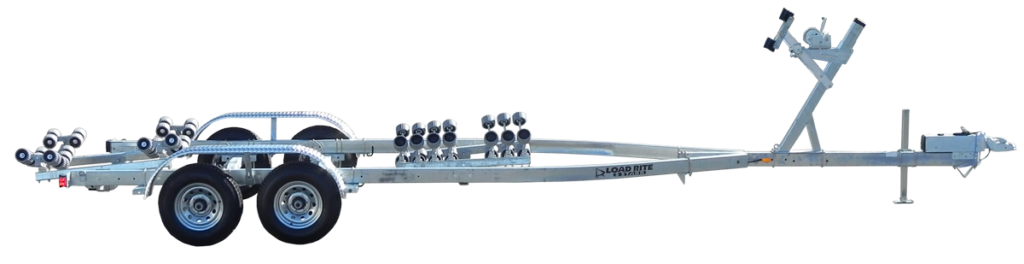

5S-26T7700TG2

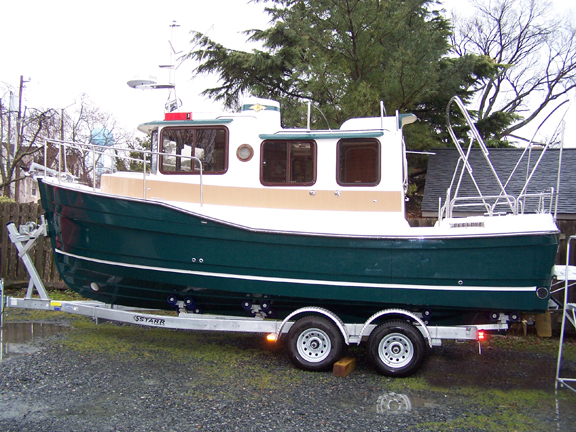

Ranger 25

2009 Ranger Tug 25 on a 5S-25T6000TG2.

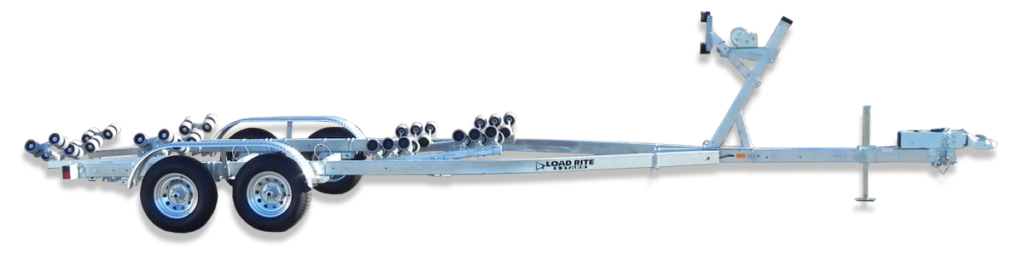

5S-26T7700102TG2
