Load Rite Aluminum Catamaran

AluminumTandem/Tri-AxleTandemBunk

Exceptional security in lightweight aluminum

Load Rite introduces a range of aluminum I-beam framed trailers for popular catamaran boats.  An exclusive, patented I-beam frame protects and conceals brake lines and wiring and eliminates over-the-frame U-bolts. Our bunk system provides exceptional security and support and easy loading and unloading. A long list of standard features including torsion axles, bead-balanced radial tires, LED lighting, Quick-Slide® support bunk covers and carpeted adjustable inner guides, along with a wide range of options make these models as close to custom as you can get, but at the reasonable price point of an adjustable trailer.

We offer aluminum dual-axle and tri-axle trailers for catamarans up to 15,000 pounds with numerous standard features and options.

All of these features are backed by the industry leading Load Rite 2 + 3 Warranty.

Specifications subject to change without notice.  Not responsible for publishing errors.

MODELS & SPECIFICATIONS
STANDARD FEATURES
OPTIONS
GALLERY
WARRANTY & MANUALS
Find a Dealer

MODELS & SPECIFICATIONS

Share this trailer
Load Rite Aluminum Catamaran
MODELCAPACITYAXLESBRAKESTIRE SIZEOVERALL WIDTHBETWEEN FENDERSSpec Sheet
LR-ACAT23T6000102TB16,00021, 2ST215/R14C102"82"PDF
LR-ACAT25T7300102TB27,30022ST225/R15D102"82"PDF
LR-ACAT26T8225102TB28,22522ST225/R15D102"82"PDF
LR-ACAT26T9000102TB29,00021, 2ST235/R16D102"82"PDF
LR-ACAT29R12000102TB312,00033ST225/R15D102"82"PDF
LR-ACAT29R15000102TB315,00033ST235/R16D102"82"PDF
Patented Aluminum I-Beam Frame Read More Info

Patented Aluminum I-Beam Frame

Patented designs offer many features that add functionality to a great look.  Integrated wire gutter beneath the top flange securely protects wiring and brakelines.  Models to 7,300 lbs. capacity feature a captured fastener channel along the bottom flange offering invisible mounting points for other features.  Web mounted crossbars strengthen the overall frame assembly.

Find a dealer
Torsion Axles Read More Info

Torsion Axles

Torsion axles provide independent suspension, exceptional rigidity, corrosion resistance, and a far superior ride to any leaf spring suspension.  Available on most models.

Find a dealer
Greaseable Hubs Read More Info

Greaseable Hubs

Trailer with peace of mind knowing that you’ve inspected the condition and topped off the lubricant level in each hub of your trailer.

Find a dealer
Disc Brakes (Where Installed) Read More Info

Disc Brakes (Where Installed)

This trailer is equipped with disc brakes (where installed).  Load Rite recommends disc brakes on all wheels where available.  Disc brakes are self-adjusting and self-cleaning and require minimal maintenance in order to continue to deliver top performance.  Follow maintenance tips in your Owners Manual for more detailed instructions.

Find a dealer
Radial Tires Read More Info

Radial Tires

Tow smoother, quieter, and farther with radial tires installed on your trailer.  Original equipment on Load Rite Elite 5 STARR models with 13″ and larger wheels except skiff and pontoon models.  Optional on all pontoon and skiff / jon models.  Includes KENDACARE – LOADSTAR TIRE ROADSIDE ASSISTANCE PROGRAM.

Find a dealer
Balanced Wheels 13″ and Larger Read More Info

Balanced Wheels 13″ and Larger

CounterAct Wheel Bead Balancing is now included on all 13″ and larger wheel assemblies as a standard feature.  The wheels dynamically balance during each use.
Visit counteractbalancing.com for more information.

Find a dealer
LED Lighting Read More Info

LED Lighting

LED lights offer far greater reliability than incandescent fixtures.  Long-lasting and waterproof design make these lights ideal for any trailer application.

Find a dealer
Heat-Shrunk Sealed, Concealed Wiring Read More Info

Heat-Shrunk Sealed, Concealed Wiring

Standard equipment on all trailers 17′ and longer except welded frame models.

Find a dealer
DOT Rated Tires and Lighting Read More Info

DOT Rated Tires and Lighting

All Load Rite original equipment tires and lighting components are fully DOT approved.

Find a dealer
Load Rite Optional One Piece Fenders One-piece aluminum fender Read More Info
Load Rite Optional One Piece Fenders

One-piece aluminum fender

Stylish one-piece aluminum diamond-plate fender design is featured on all tandem and triaxle boat trailers.

Find a dealer
Load Rite aluminum fender step Aluminum Fender Steps Read More Info
Load Rite aluminum fender step

Aluminum Fender Steps

Exclusive to the Load Rite Elite LR-AB, LR-AR, and LR-ASKI models.  These steps are ribbed for added grip.

Find a dealer
QUICK-SLIDE® BUNK COVERS Quick-Slide® Bunk Covers Read More Info
QUICK-SLIDE® BUNK COVERS

Quick-Slide® Bunk Covers

These multi-purpose covers provide a smooth surface to help the boat or pontoon to slide easier when launching and loading.  They also offer an insulating barrier to help prevent corrosion for metallic hulled craft.  Highly recommended for pontoon applications.

Find a dealer
Tongue Jack Read More Info

Tongue Jack

Tongue jacks are standard equipment on all Load Rite Elite models 90″ wide and wider except two-place PWC models, all 5 STARR models, and all UT, EQ, and CH models.  Appearance and specifications vary by application.  Tongue jacks are optional on all other models.

Find a dealer
Load Rite Trailer Drop Tongue Jack Drop Style Tongue Jack Read More Info
Load Rite Trailer Drop Tongue Jack

Drop Style Tongue Jack

Standard equipment on many high capacity galvanized and aluminum models.

Find a dealer
Winch Read More Info

Winch

A winch is standard equipment on all boat and PWC models.  Capacity and features vary by application.

Find a dealer
Winch Stand Read More Info

Winch Stand

Standard equipment on all boat and PWC models.  Specifications vary by applicaton.

Find a dealer
NMMA / NATM Certified Read More Info

NMMA / NATM Certified

Each year Load Rite trailers undergo a detailed inspection process in order to earn the right to proudly display this certification on products we manufacture.

Find a dealer
2 Plus 3 Years Coupler to Taillight Warranty Read More Info

2 Plus 3 Years Coupler to Taillight Warranty

Load Rite’s premiere warranty exclusive to our Elite line of trailers.

Find a dealer
Load Rite Split Star aluminum wheel Aluminum Wheels Read More Info
Load Rite Split Star aluminum wheel

Aluminum Wheels

A stylish option available with bias-ply or radial tires for most models in 12″, 13″, 14″, 15″ and 16″ sizes.

Find a dealer
Spare Tire and Carrier Read More Info

Spare Tire and Carrier

The most important option to consider, every trailer should have a spare tire readily available.  Consult dealer for recommended bracket for individual application.

Find a dealer
Brakes on All Axles Read More Info

Brakes on All Axles

Important Safety Issue – Brake Requirements

Brake laws vary by state and require dealers to sell trailers that comply with the brake laws of the state where the trailer will be registered.  This is a very important safety issue.  For full information contact the appropriate state Motor Vehicle Department.  As always, Load Rite recommends brakes on all axles where available.



Find a dealer
KODIAK STAINLESS STEEL DISC BRAKES Stainless Steel Disc Brakes Read More Info
KODIAK STAINLESS STEEL DISC BRAKES

Stainless Steel Disc Brakes

Optional stainless steel brakes available for most 14″, 15″ and 16″ wheel applications. Can be used with surge and electric over hydraulic actuators.*

May require optional axle installation.  Check with your local dealer before ordering.

Find a dealer
Stainless Brakelines Read More Info

Stainless Brakelines

A valuable upgrade to any trailer, but especially those to see service in coastal regions with salt water exposure.

Find a dealer
Electric Over Hydraulic Brakes Read More Info

Electric Over Hydraulic Brakes

EOH brakes offer electric in-cab control of standard hydraulic disc brakes.  Requires in-cab controller and 7-pin round electrical connection to the tow vehicle.

Find a dealer
Stainless Main Frame Hardware Read More Info

Stainless Main Frame Hardware

Available for most Load Rite Elite LR-AB, LR-ASKI, LR-AR, LR-AS and 5 STARR 5S-AC aluminum models. Includes main frame hardware.  Excludes bunk, roller, winchstand, and coupler / actuator hardware.  Not available for galvanized frame models.

Find a dealer
Load Rite Trailer Drop Tongue Jack Drop-Style Tongue Jack Read More Info
Load Rite Trailer Drop Tongue Jack

Drop-Style Tongue Jack

An upgraded jack that provides greater capacities and fast setup with no need to swivel.

Find a dealer
Rubber Fenders Read More Info

Rubber Fenders

Rubber fenders are intended for use on dealer yard trailers.  Yard trailers need the flexibility to adapt to many different hull shapes without imparting any damage in the process.  Rubber fenders minimize the possibility of damage should the fender contact the boat hull.

Find a dealer

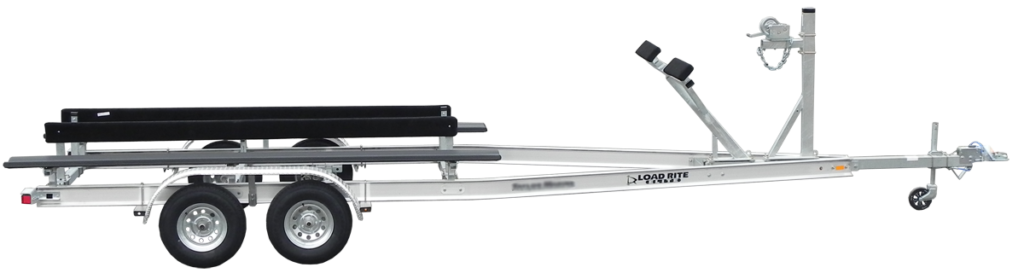

LR-ACAT23T6000102TB1

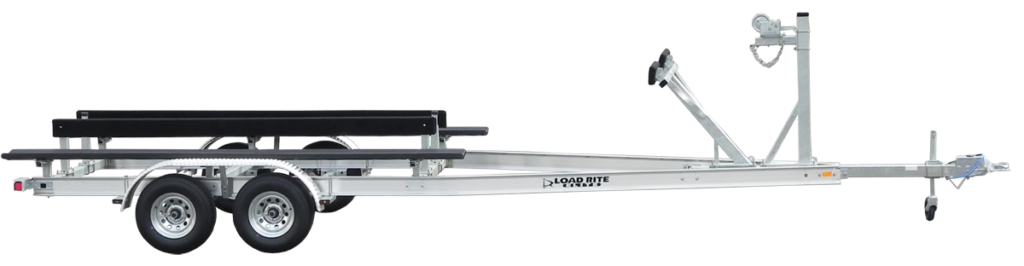

LR-ACAT23T6000102TB2

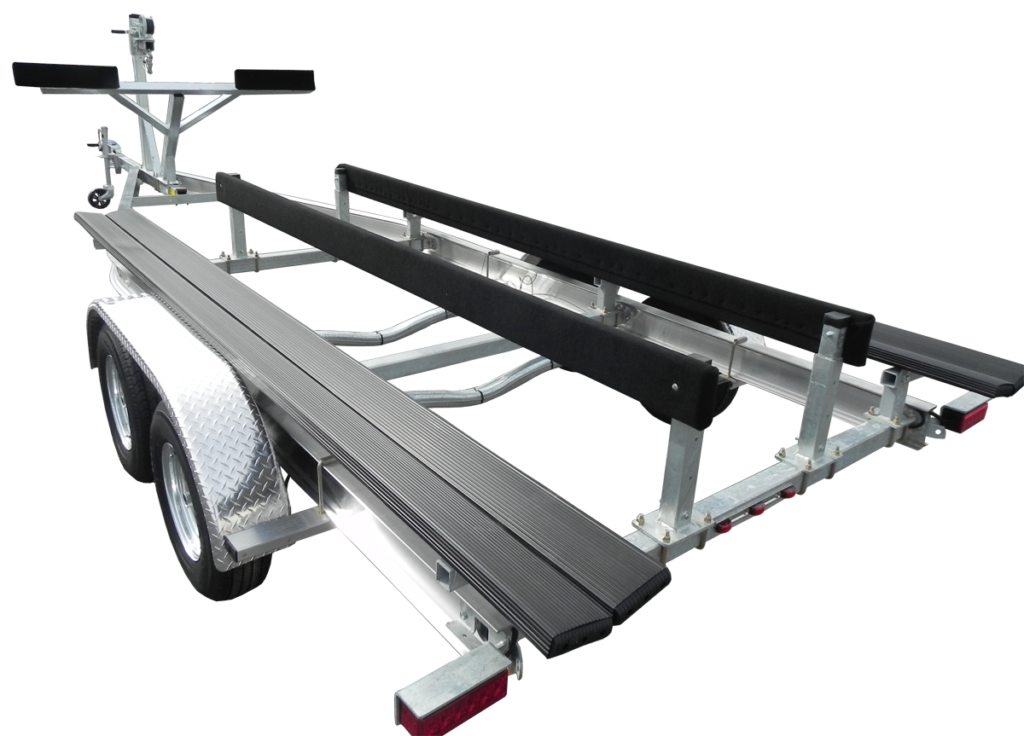

LR-ACAT23T6000102TB2-LR34

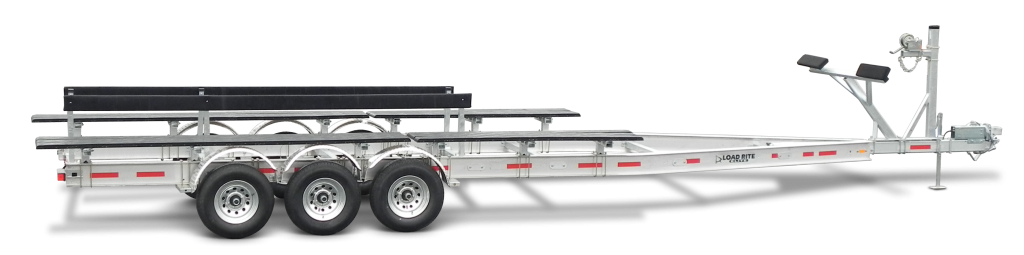

LR-ACAT32R15000102TB2

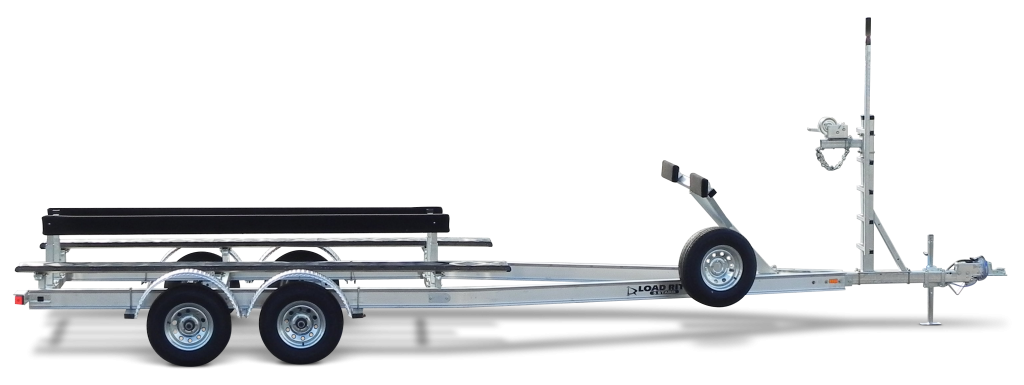

LR-ACAT23T6000102TB1

Shown with optional equipment.

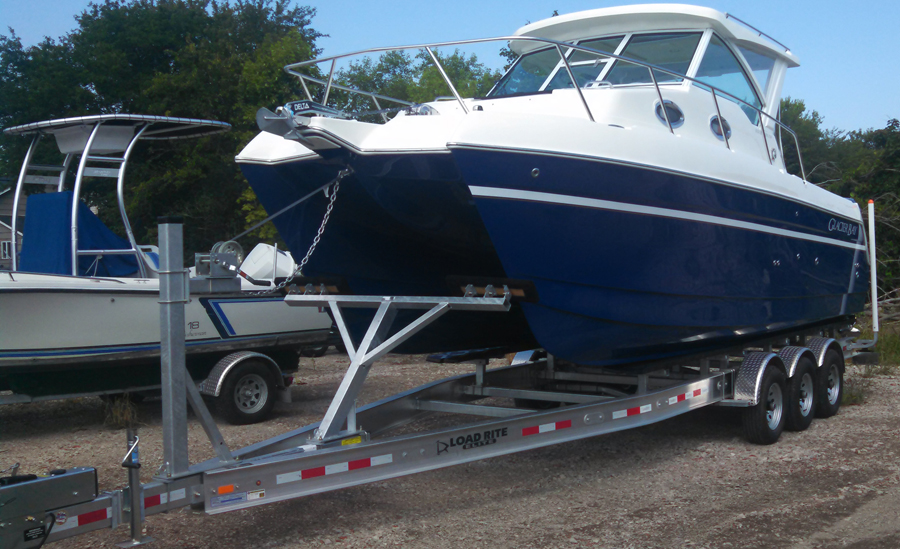

Glacier Bay

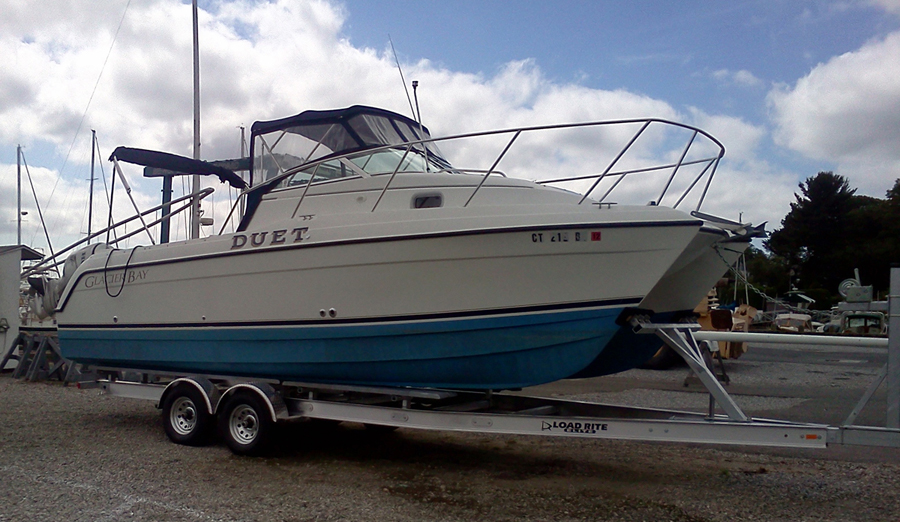

Glacier Bay on aluminum I-beam LR-ACAT29R12000102TB3.

Glacier Bay 1

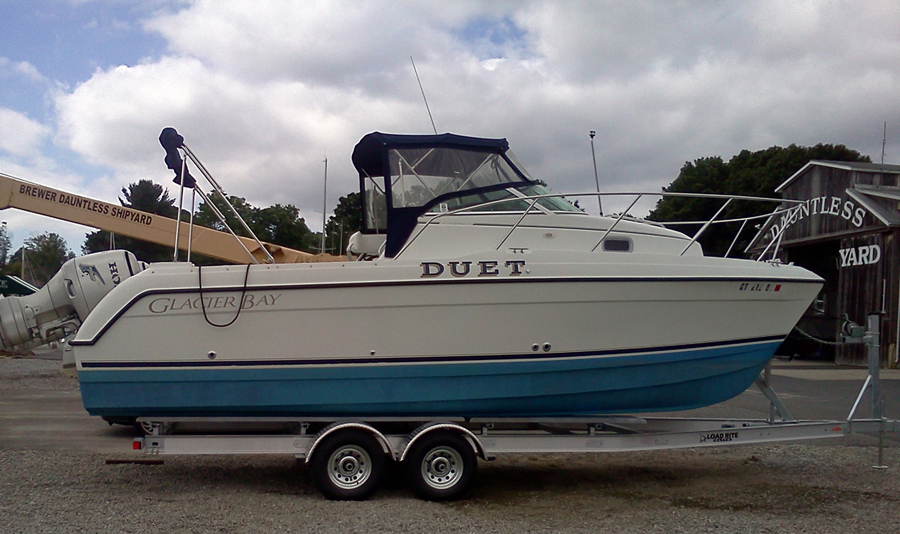

Glacier Bay on aluminum I-Beam LR-ACAT26T8000102TB2.

Glacier Bay 2
