 | Trailers | Boat Trailers | 5 STARR Aluminum Tandem and Triaxle Bunk

5 STARR Aluminum Tandem and Triaxle Bunk

BunkAluminumTandem/Tri-AxleTandem

Load Rite’s 5 STARR AC Aluminum Bunk trailers feature our patented aluminum I-beam frame design which provides maximum strength and stability along with a sleek, custom appearance and the weight-saving advantages and natural corrosion resistance of aluminum. Dedicated gutters shroud wiring and brake lines along the inside length of the frame, while integrated fastener channels for axle and fender mounting minimize unsightly U-bolts straddling the frame. The result is a sleek, custom appearance.

The bunk system is easy to set up to most any hull. Torsion axles, disc brakes, and LED lights are standard on all models. With a wide array of available options, our 5 STARR trailers provide the Load Rite durability and performance you’re looking for at an exceptional value.

All of these features are backed by the industry leading Load Rite / 5 STARR 2 + 3 Warranty.

Specifications subject to change without notice.  Not responsible for publishing errors.

MODELS & SPECIFICATIONS
STANDARD FEATURES
OPTIONS
GALLERY
WARRANTY & MANUALS
Find a Dealer

MODELS & SPECIFICATIONS

Share this trailer
5 STARR Aluminum Tandem and Triaxle Bunk
MODELCAPACITYBOW EYE TO TRANSOM MAXIMUMBOW EYE TO TRANSOM MINIMUMBUNK TYPEAXLESBRAKESTIRE SIZEOVERALL WIDTHBETWEEN FENDERSOVERALL LENGTHSpec Sheet
5S-AC21T5200102TB15,20020' 3"15' 5"C21, 2ST205/14C102"84"23' 6"PDF
5S-AC23T5200102LTB15,20021' 5"15' 5"C21, 2ST205/14C102"84"25' 8"PDF
5S-AC25T5600102LTB15,60024'17' 4"C21, 2ST205/14C102"82"27' 6"PDF
5S-AC25T6000102LTB16,00024'17' 4"C21, 2ST215/14C102"82"27' 6"PDF
5S-AC25T6300102LTB16,30024'17' 4"C21, 2ST205/15D102"82"27' 6"PDF
5S-AC26T6700102LTB16,70025' 7"19' 3"C21, 2ST205/15D102"85"28' 11"PDF
5S-AC26T7300102LTB17,30024' 5"19' 3"C21, 2ST225/15D102"82"29'PDF
5S-AC26T8400102LTB28,40024' 5"19' 3"C22ST225/15D102"82"29'PDF
5S-AC27T6100102LTB26,10026' 7"19' 3"C21, 2ST215/14C102"82"29' 8"PDF
5S-AC28T8400102LTB28,40026' 3"22' 10"C22ST225/15D102"84"31'PDF
5S-AC28T10000102TB2 10,00027' 6"21' 6"C22ST235/16D102"82"32' 4"PDF
5S-AC28R10400102TB310,40027' 6"21' 6"C33ST205/15D102"82"32' 4"PDF
5S-AC28R12000102TB312,00026' 2"21' 4"C33ST225/15D102"82"31' 3"PDF
5S-AC30T9700102TB29,70028' 6"23'C22ST235/R16D102"82"33' 6"PDF
5S-AC32R10400102TB310,40029' 2"24' 1"C33ST205/15D102"82"33' 9"PDF
5S-AC32R12000102TB312,00030'24' 11"C33ST225/15D102"82"34' 10"PDF
Aluminum I-Beam Frame Read More Info

Aluminum I-Beam Frame

Patented designs offer many features that add functionality to a great look.  Integrated wire gutter beneath the top flange securely protects wiring and brakelines.  Models to 7,300 lbs. capacity feature a captured fastener channel along the bottom flange offering invisible mounting points for other features.  Web mounted crossbars strengthen the overall frame assembly.

Find a dealer
Torsion Axles Read More Info

Torsion Axles

Torsion axles provide independent suspension, exceptional rigidity, corrosion resistance, and a far superior ride to any leaf spring suspension.  Available on most models.

Find a dealer
Greaseable Hubs Read More Info

Greaseable Hubs

Trailer with peace of mind knowing that you’ve inspected the condition and topped off the lubricant level in each hub of your trailer.

Find a dealer
Disc Brakes (Where Installed) Read More Info

Disc Brakes (Where Installed)

This trailer is equipped with disc brakes (where installed).  Load Rite recommends disc brakes on all wheels where available.  Disc brakes are self-adjusting and self-cleaning and require minimal maintenance in order to continue to deliver top performance.  Follow maintenance tips in your Owners Manual for more detailed instructions.

Find a dealer
Load Rite BIAS-PLY TIRES Bias-Ply Tires Read More Info
Load Rite BIAS-PLY TIRES

Bias-Ply Tires

High quality USDOT-rated tires.  Standard on all 5 STARR, pontoon, skiff and jon models, and models 90″ wide and narrower.  Easily upgraded to radial tires at time of order.  Includes KENDACARE – LOADSTAR TIRE ROADSIDE ASSISTANCE PROGRAM.

Find a dealer
Balanced Wheels 13″ and Larger Read More Info

Balanced Wheels 13″ and Larger

CounterAct Wheel Bead Balancing is now included on all 13″ and larger wheel assemblies as a standard feature.  The wheels dynamically balance during each use.
Visit counteractbalancing.com for more information.

Find a dealer
DOT Rated Tires and Lighting Read More Info

DOT Rated Tires and Lighting

All Load Rite original equipment tires and lighting components are fully DOT approved.

Find a dealer
LED Lighting Read More Info

LED Lighting

LED lights offer far greater reliability than incandescent fixtures.  Long-lasting and waterproof design make these lights ideal for any trailer application.

Find a dealer
Heat-Shrunk Sealed, Concealed Wiring Read More Info

Heat-Shrunk Sealed, Concealed Wiring

Standard equipment on all trailers 17′ and longer except welded frame models.

Find a dealer
Continuous All Wood Bunks Read More Info

Continuous All Wood Bunks

Marine-grade carpeting over wood slab bunks provide solid support without marring the hull during loading and unloading.  Initial setup is simplified by this basic design.

Find a dealer
Target Bunks Read More Info

Target Bunks

Carpeted bunks located just aft of the tongue area but ahead of main bunks.  Positioned low in the frame to “catch” the keel as the boat is loaded and prevent keel to crossbar contact while launching.  Target bunks are standard equipment on all Load Rite Elite LR-AB, LR-ASKI, LR-AS, and 5 STARR 5S-AC tandem and triaxle models.  Optional on some single axle Elite LR-AB, 5 STARR 5S-AC, and some galvanized models.  Some applications may require an additional crossbar be installed.

Find a dealer
Tongue Jack Read More Info

Tongue Jack

Tongue jacks are standard equipment on all Load Rite Elite models 90″ wide and wider except two-place PWC models, all 5 STARR models, and all UT, EQ, and CH models.  Appearance and specifications vary by application.  Tongue jacks are optional on all other models.

Find a dealer
Load Rite Trailer Drop Tongue Jack Drop Style Tongue Jack Read More Info
Load Rite Trailer Drop Tongue Jack

Drop Style Tongue Jack

Standard equipment on many high capacity galvanized and aluminum models.

Find a dealer
Load Rite Optional One Piece Fenders One-piece aluminum fender Read More Info
Load Rite Optional One Piece Fenders

One-piece aluminum fender

Stylish one-piece aluminum diamond-plate fender design is featured on all tandem and triaxle boat trailers.

Find a dealer
NMMA / NATM Certified Read More Info

NMMA / NATM Certified

Each year Load Rite trailers undergo a detailed inspection process in order to earn the right to proudly display this certification on products we manufacture.

Find a dealer
2 Plus 3 Years Limited Warranty
placeholder KendaCare – LoadStar® Tire Roadside Assistance Program Read More Info
placeholder

KendaCare – LoadStar® Tire Roadside Assistance Program

Click here for more information from Americana Tire.

Find a dealer
Radial Tires Read More Info

Radial Tires

Smoother riding and longer wear life than many bias-ply tires.  A highly recommended upgrade.  Available for 13″ and larger wheels.

Find a dealer
Load Rite Split Star aluminum wheel Aluminum Wheels Read More Info
Load Rite Split Star aluminum wheel

Aluminum Wheels

A stylish option available with bias-ply or radial tires for most models in 12″, 13″, 14″, 15″ and 16″ sizes.

Find a dealer
Brakes on All Axles Read More Info

Brakes on All Axles

Important Safety Issue – Brake Requirements

Brake laws vary by state and require dealers to sell trailers that comply with the brake laws of the state where the trailer will be registered.  This is a very important safety issue.  For full information contact the appropriate state Motor Vehicle Department.  As always, Load Rite recommends brakes on all axles where available.



Find a dealer
Electric Over Hydraulic Brakes Read More Info

Electric Over Hydraulic Brakes

EOH brakes offer electric in-cab control of standard hydraulic disc brakes.  Requires in-cab controller and 7-pin round electrical connection to the tow vehicle.

Find a dealer
KODIAK STAINLESS STEEL DISC BRAKES Stainless Steel Disc Brakes Read More Info
KODIAK STAINLESS STEEL DISC BRAKES

Stainless Steel Disc Brakes

Optional stainless steel brakes available for most 14″, 15″ and 16″ wheel applications. Can be used with surge and electric over hydraulic actuators.*

May require optional axle installation.  Check with your local dealer before ordering.

Find a dealer
Stainless Brakelines Read More Info

Stainless Brakelines

A valuable upgrade to any trailer, but especially those to see service in coastal regions with salt water exposure.

Find a dealer
Carpeted Skirted Fender Read More Info

Carpeted Skirted Fender

Skirted fenders protect the hull finish in two ways.  First, the carpet facing the hull help protect from fender contact while loading and unloading.  Second, it protects the hull from road debris picked up by the tires.  Two valuable precautions for a treasured friend.  Optional on most models with aluminum fenders as standard equipment.

Some models require galvanized fender step to accommodate this option.

Find a dealer
Load Rite Trailer Drop Tongue Jack Drop-Style Tongue Jack Read More Info
Load Rite Trailer Drop Tongue Jack

Drop-Style Tongue Jack

An upgraded jack that provides greater capacities and fast setup with no need to swivel.

Find a dealer
Plastic Bunk Covers Read More Info

Plastic Bunk Covers

These multi-purpose covers provide a smooth surface to help the boat or pontoon to slide easier when launching and loading.  They also offer an insulating barrier to help prevent corrosion for metallic hulled craft.  Protect your aluminum hull.

Highly recommended for metal-hulled boats and pontoon applications.

Find a dealer
Stainless Main Frame Hardware Read More Info

Stainless Main Frame Hardware

Available for most Load Rite Elite LR-AB, LR-ASKI, LR-AR, LR-AS and 5 STARR 5S-AC aluminum models. Includes main frame hardware.  Excludes bunk, roller, winchstand, and coupler / actuator hardware.  Not available for galvanized frame models.

Find a dealer
Load Rite SWING TONGUE Swing Tongue Read More Info
Load Rite SWING TONGUE

Swing Tongue

Applications are limited by trailer capacity and tongue length.  Not available on models exceeding 6,000 lbs. capacity.  Consult with a dealer.

Find a dealer
PVC Side Guides Read More Info

PVC Side Guides

PVC side guides provide additional guidance when lining up to load on steep ramps.  Optional on most other boat trailers including all 5 STARR models.

Find a dealer
Independent Bow Stop Read More Info

Independent Bow Stop

Adjustable, galvanized steel, Independent Bow Stop Assembly.  Telescopic post, 2×6″ wooden carpeted wedge pivots to adapt to bow angle.  Mounts to the tongue.  Useful as a forward stop for boats with a high bow, bow pulpit or windlass that could interfere with normal winchstand operation.

Find a dealer
Rubber Fenders Read More Info

Rubber Fenders

Rubber fenders are intended for use on dealer yard trailers.  Yard trailers need the flexibility to adapt to many different hull shapes without imparting any damage in the process.  Rubber fenders minimize the possibility of damage should the fender contact the boat hull.

Find a dealer

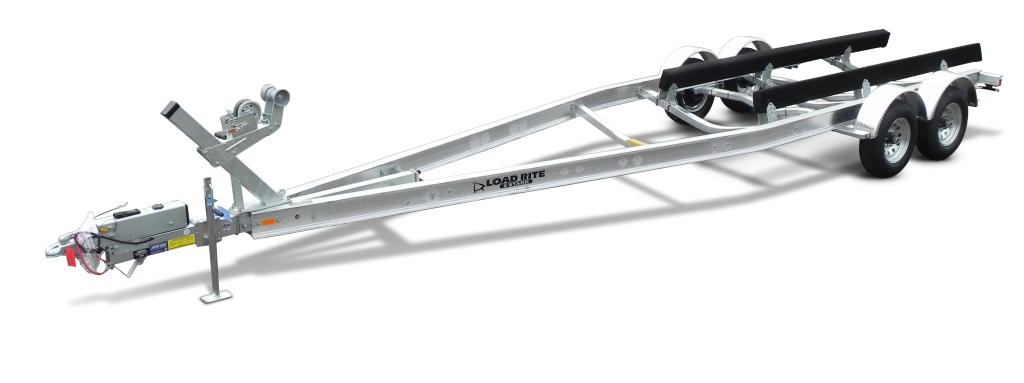

5S-AC28T8400102LTB2

5S-AC25T6300102LTB1

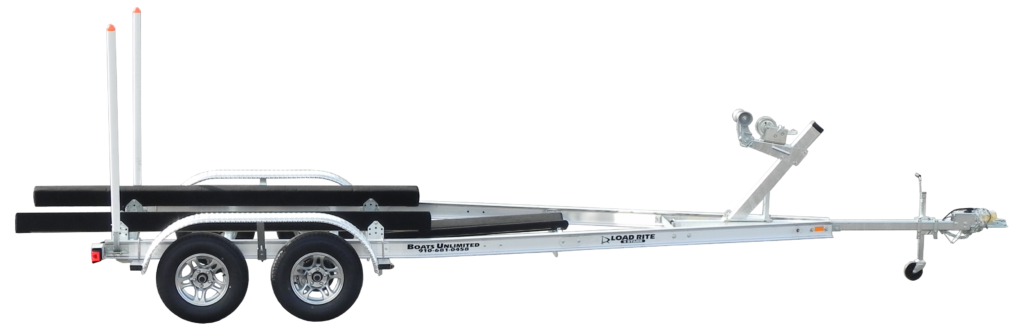

5S-AC23T5200102LTB1

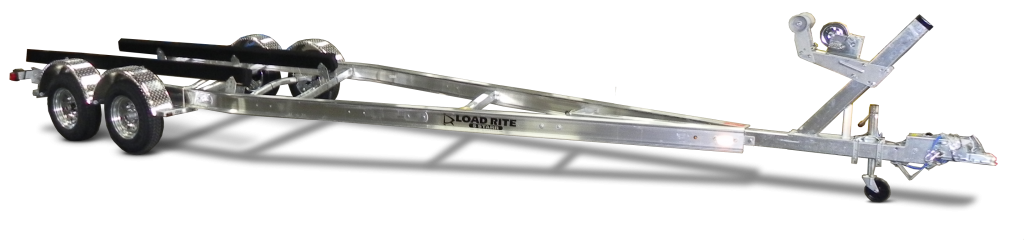

5S-AC27T6100102LTB2

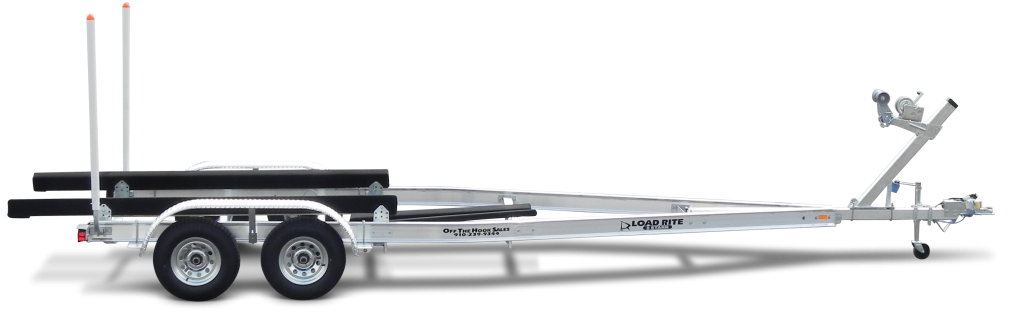

5S-AC25T6000102LTB1

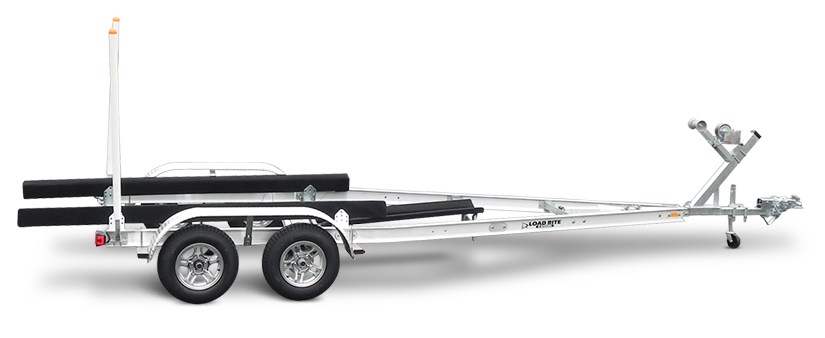

5S-AC23T5200102LTB1

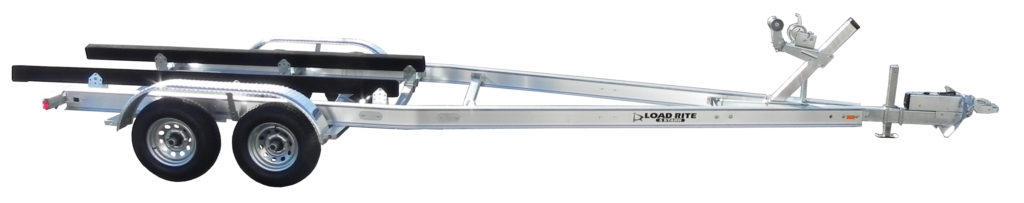

5S-AC26T7300102LTB1

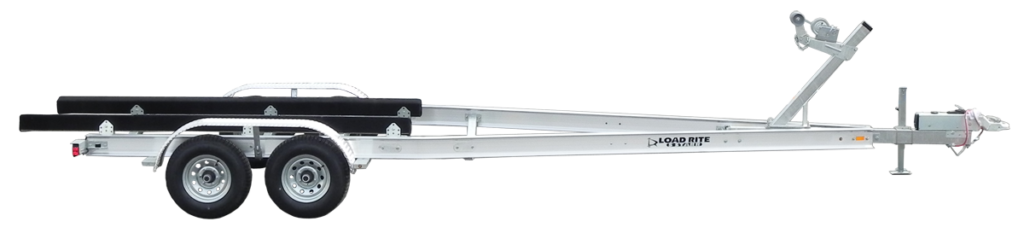

5S-AC26T8400102LTB2

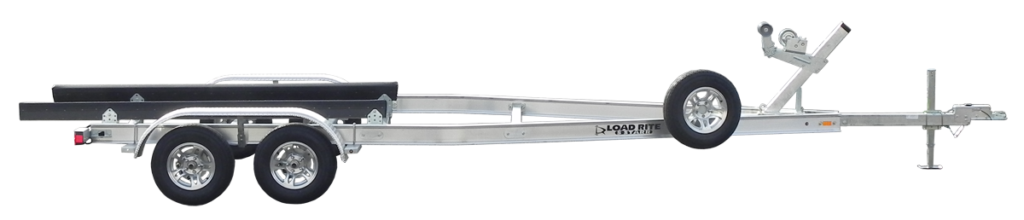

5S-AC25T5200102LTB2

Shown with spare tire and wheel, spare carrier, aluminum wheel, plastic bunk covers, and LED light options.

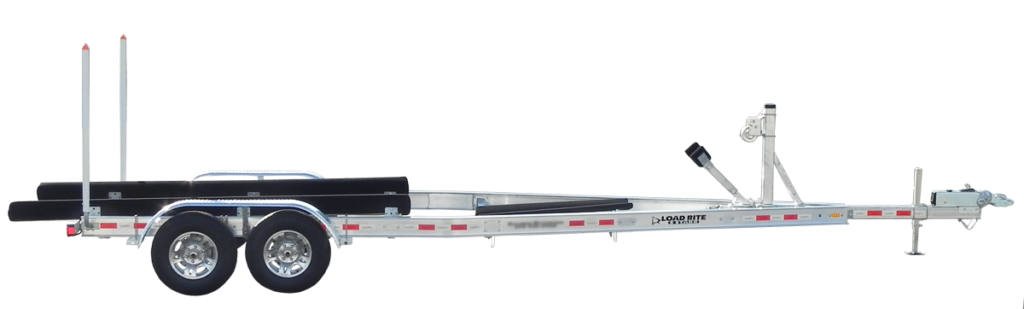

5S-AC28T10000102TB2

fountain

23' center console Fountain on 5C-AC26T7300102LTB1 step hull.

Sea Hunt 30

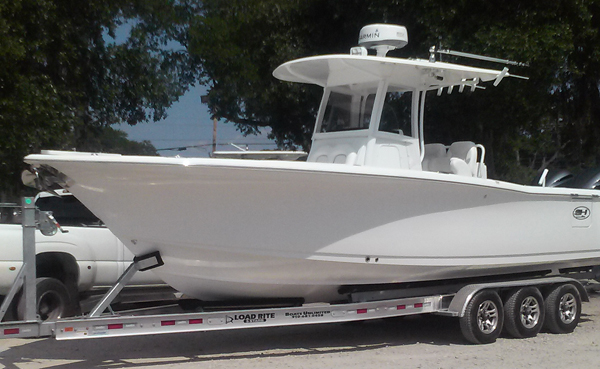

Sea Hunt on 5S-AC32R10400102TB3. Shown with optional aluminum wheels, steel bunk tubes, vertical winchstand, and bow support.

Brig Eagle 580

Brig Eagle 580 on aluminum I-Beam 5S-AC23T5200102LTB1.

Tidewater 216

Wellcraft on AC bunk

22' Wellcraft WA on a 5 STARR C-bunk tandem.

Azure on 5 STARR

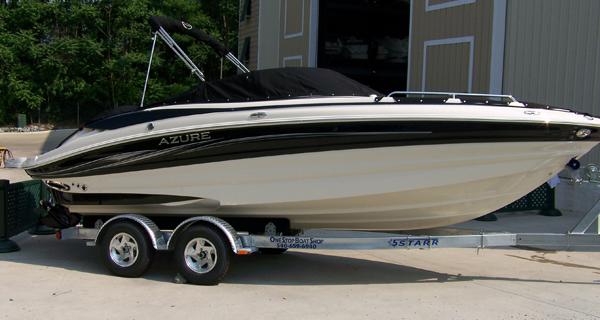

Azure on a galvanized 5 STARR C-bunk (Teardrop custom wheel style shown no longer available).

Cobalt 232 on 5S-AC24T6000102TB1

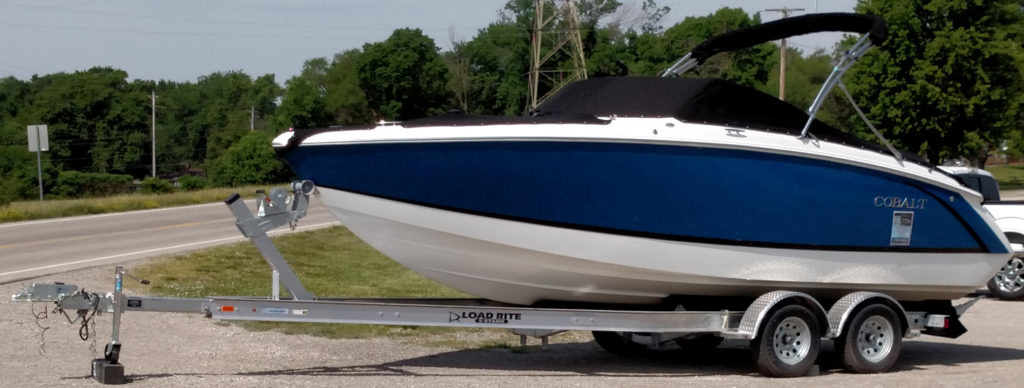

Cobalt 232 on a 5 STARR 5S-AC24T6000102TB1 (shown with optional Star Mag aluminum wheels).

Whaler

Whaler on AC bunk with straight crossbars.

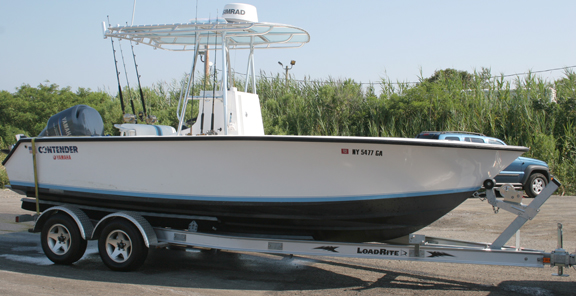

Bluefin Montauk

Load Rite LR-AC22T5200102TB2 carrying Capt. John Luchka's Allcoast Media 21CC Contender. Load Rite partners with Allcoast. Visit today and catch up on questions submitted by other boaters who use trailers, post your own question, or add feedback to other boaters' questions.

Vanquish 21 CC

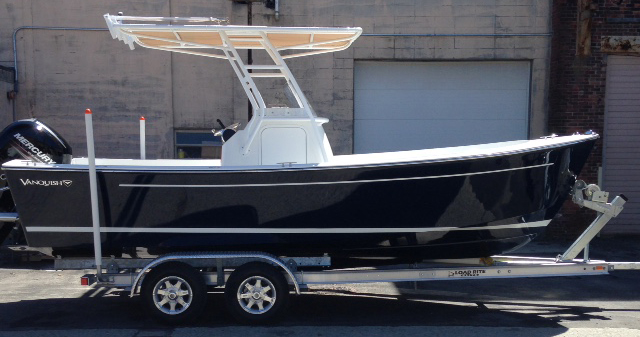

Vanquish 21 CC on a AB23T5200102LTB2.

Cobalt R3

On a 5 STARR AC bunk with optional target bunks.

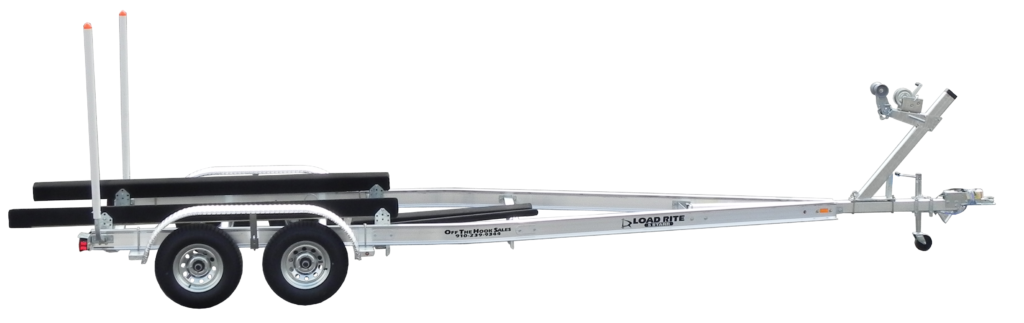

5S-AC21T5200

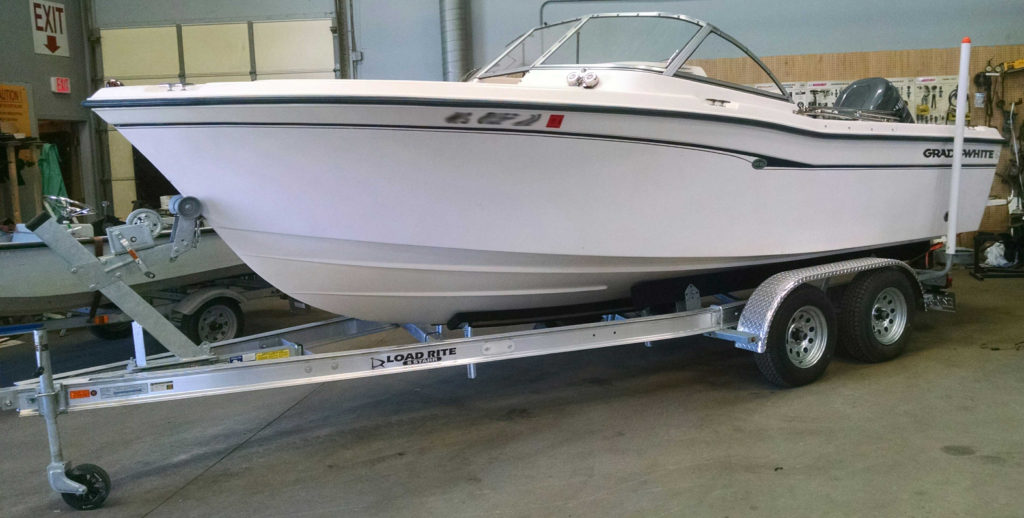

Grady White 205 on a 5S-AC21T5200102TB1.

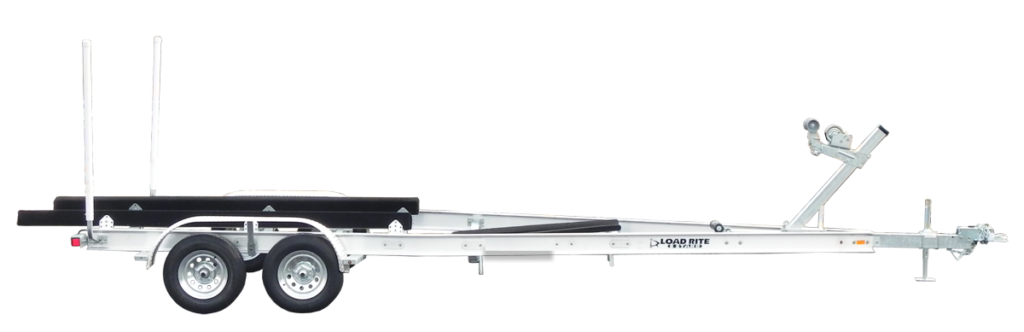

5S-AC26T6700102LTB1
