P-Series Pontoon Trailers

GalvanizedSingleTandem/Tri-AxleBunk

The P-Series Load Rite pontoon trailer is the latest evolution in Load Rite’s production of highly corrosion-resistant, supremely adjustable, and feature-filled trailers to fulfill the trailering needs of most any pontoon boat design currently available.

Each Load Rite pontoon trailer features a galvanized steel frame for superior anti-corrosion protection and ultimate service life.  Steel is an excellent material for boat trailer construction but when unprotected, or even traditionally painted, and exposed to water steel tends to corrode and diminish in strength over time.  Galvanization slows that process to a glacial crawl allowing a galvanized steel trailer to outlive a painted counterpart by many lifetimes.

Every Load Rite pontoon trailer is engineered with great features like galvanized torsion axle suspension(1) for a long-lasting, smooth and quite ride.  Where brakes are required, Load Rite pontoon trailers come standard with smooth stopping disc brakes which also offer the benefits of being self-cleaning and adjusting.  And standard LED lighting.  This all means much less maintenance and more time on the water for every Load Rite pontoon trailer owner.

Some other standard features on all Load Rite pontoon models are: full-length, adjustable, carpeted bunks; winchstand with carpeted bunks, two slip-resistant steps, and a safety handrail(2); bead-balanced tires on galvanized wheels; manual winch and tongue jack.

Load Rite offers a wide range of options to elevate any P-Series Load Rite pontoon to unrivaled levels of service and convenience.

All of these features are backed by the industry leading Load Rite 2 + 3 Warranty.

Specifications subject to change without notice.  Not responsible for publishing errors.

(1) Except triaxle models with leaf-spring suspension.

(2) Except 16′ models.

MODELS & SPECIFICATIONS
STANDARD FEATURES
OPTIONS
GALLERY
WARRANTY & MANUALS
Find a Dealer

MODELS & SPECIFICATIONS

Share this trailer
P-Series Pontoon Trailers
Galvanized Pontoon ModelsCapacitySuspensionFront Deck Transom MaximumFront Deck Transom MinimumAxlesBrakesTire Size'Toon Center Min / MaxOverall WidthOverall LengthSpec Sheet
P-16150076T1,500Torsion16' 5"11' 9"104.80x12C56.75" - 61.5"77"18' 9"PDF
P-162200NT2,200Torsion16'13' 6"10ST175/13D59" - 70"98"19'PDF
P-161800T1,800Torsion16'13' 6"10ST175/13D66.5" - 78"99"20'PDF
P-17/18-2000T2,000Torsion18' 2"15' 9"10ST175/13D66.5" - 78"98"22' 4"PDF
P-18/20-2350T2,350Torsion20'17' 6"10ST175/13D66.5" - 78"98"24'PDF
P-18/20-2550T2,550Torsion20'17' 6"10ST185/13D66.5" - 78"98"24PDF
P-18/20-2750T2,750Torsion20'17' 6"10ST205/14C66.5" - 78"98"24'PDF
P-18/20T-3000T3,000Torsion20'17' 6"20ST175/13C66.5" - 78"98"24'PDF
P-18/20T-4100TB14,100Torsion20'17' 6"21, 2ST175/13C66.5" - 78"98"24'PDF
P-20/22-2550T2,550Torsion22'19' 6"10ST185/13D66.5" - 78"98"26' 2"PDF
P-20/22-2750T2,750Torsion22'19' 6"10ST205/14C66.5" - 78"98"26' 2"PDF
P-20/22-3000T3,000Torsion22'19' 6"20ST175/13C66.5" - 78"98"26' 2"PDF
P-20/22T-4100TB14,100Torsion22'19' 6"21, 2ST175/13C66.5" - 78"98"26' 3"PDF
P-22/24T-3000T3,000Torsion24'21' 6"20ST175/13C66.5" - 78"98"27' 11"PDF
P-22/24T-4100TB14,100Torsion24'21' 6"21, 2ST175/13C66.5" - 78"98"28' 7"PDF
P-22/24T-4700TB14,700Torsion24'21' 6"21, 2ST175/13D66.5" - 78"98"28' 7"PDF
P-24/26T-5000TB15,000Torsion26'23' 6"21, 2ST185/13D66.5" - 78"98"31' 7"PDF
P-24/26T-6000TB16,000Torsion26"23' 6"21, 2ST215/14C66.5" - 78"98"31' 7"PDF
P-24/26T-7000TB17,000Torsion26'23' 6"21, 2ST205/15D66.5"-78"98"31' 7"PDF
P-26/28T-5000TB15,000Torsion28'25' 6"21, 2ST185/13D66.5" - 78"98"32' 10"PDF
P-26/28T-6000TB16,000Torsion28'25' 6"21, 2ST215/14C66.5" - 78"98"33' 5"PDF
P-26/28T-7000TB17,000Torsion28'25' 6"21, 2ST215/14C66.5" - 78"98"33' 5"PDF
P-30R-5500TB15,500Spring27'30'31, 2, 3ST175/13C66.5" - 78"98"32' 6"PDF
P-35R-5500TB35,500Spring32'35'33ST205/14C66.5" - 78"98"37'PDF
Galvanized Steel Frame Read More Info

Galvanized Steel Frame

Tubular structural steel, fully hot dip galvanized, provides the ultimate finish for any boat trailer.  Tubular design shrouds wiring and brake lines from damage.  All machining and welding is performed before galvanizing, so there are no surfaces left unprotected from a boat trailer’s ultimate enemy: corrosion.

Find a dealer
Load Rite BIAS-PLY TIRES Bias-Ply Tires Read More Info
Load Rite BIAS-PLY TIRES

Bias-Ply Tires

High quality USDOT-rated tires.  Standard on all 5 STARR, pontoon, skiff and jon models, and models 90″ wide and narrower.  Easily upgraded to radial tires at time of order.  Includes KENDACARE – LOADSTAR TIRE ROADSIDE ASSISTANCE PROGRAM.

Find a dealer
Balanced Wheels 13″ and Larger Read More Info

Balanced Wheels 13″ and Larger

CounterAct Wheel Bead Balancing is now included on all 13″ and larger wheel assemblies as a standard feature.  The wheels dynamically balance during each use.
Visit counteractbalancing.com for more information.

Find a dealer
DOT Rated Tires and Lighting Read More Info

DOT Rated Tires and Lighting

All Load Rite original equipment tires and lighting components are fully DOT approved.

Find a dealer
Pontoon torsion axle Read More Info

Pontoon torsion axle

All except triaxle models.

Find a dealer
Leaf Spring Axles
Greaseable Hubs Read More Info

Greaseable Hubs

Trailer with peace of mind knowing that you’ve inspected the condition and topped off the lubricant level in each hub of your trailer.

Find a dealer
Disc Brakes (Where Installed) Read More Info

Disc Brakes (Where Installed)

This trailer is equipped with disc brakes (where installed).  Load Rite recommends disc brakes on all wheels where available.  Disc brakes are self-adjusting and self-cleaning and require minimal maintenance in order to continue to deliver top performance.  Follow maintenance tips in your Owners Manual for more detailed instructions.

Find a dealer
Plastic Fenders Read More Info

Plastic Fenders

Impact-resistant plastic fenders on models with 12″ and smaller wheels.  Wheels 13″ and larger require aluminum fenders.

Find a dealer
LED Lighting Read More Info

LED Lighting

LED lights offer far greater reliability than incandescent fixtures.  Long-lasting and waterproof design make these lights ideal for any trailer application.

Find a dealer
Heat-Shrunk Sealed, Concealed Wiring Read More Info

Heat-Shrunk Sealed, Concealed Wiring

Standard equipment on all trailers 17′ and longer except welded frame models.

Find a dealer
Load Rite CARPETED PRESSURE-TREATED WOOD BUNKS Carpeted Wood Bunks Read More Info
Load Rite CARPETED PRESSURE-TREATED WOOD BUNKS

Carpeted Wood Bunks

Marine-grade carpeted wood bunks provide excellent support without marring the hull during loading and unloading.

Find a dealer
Pontoon Standard Winch Stand Read More Info

Pontoon Standard Winch Stand

Standard pontoon winchstand for all models.  Assembly includes two integrated steps with non-slip surface and a handrail.  Includes two carpeted bunks to protect the pontoon deck.

Find a dealer
Pontoon tongue jack Read More Info

Pontoon tongue jack

Standard on all models.

Find a dealer
Winch Read More Info

Winch

A winch is standard equipment on all boat and PWC models.  Capacity and features vary by application.

Find a dealer
NMMA / NATM Certified Read More Info

NMMA / NATM Certified

Each year Load Rite trailers undergo a detailed inspection process in order to earn the right to proudly display this certification on products we manufacture.

Find a dealer
2 Plus 3 Years Coupler to Taillight Warranty Read More Info

2 Plus 3 Years Coupler to Taillight Warranty

Load Rite’s premiere warranty exclusive to our Elite line of trailers.

Find a dealer
placeholder KendaCare – LoadStar® Tire Roadside Assistance Program Read More Info
placeholder

KendaCare – LoadStar® Tire Roadside Assistance Program

Click here for more information from Americana Tire.

Find a dealer
Spare Tire and Carrier Read More Info

Spare Tire and Carrier

The most important option to consider, every trailer should have a spare tire readily available.  Consult dealer for recommended bracket for individual application.

Find a dealer
Radial Tires Read More Info

Radial Tires

Smoother riding and longer wear life than many bias-ply tires.  A highly recommended upgrade.  Available for 13″ and larger wheels.

Find a dealer
Load Rite Split Star aluminum wheel Aluminum Wheels Read More Info
Load Rite Split Star aluminum wheel

Aluminum Wheels

A stylish option available with bias-ply or radial tires for most models in 12″, 13″, 14″, 15″ and 16″ sizes.

Find a dealer
Brakes on All Axles Read More Info

Brakes on All Axles

Important Safety Issue – Brake Requirements

Brake laws vary by state and require dealers to sell trailers that comply with the brake laws of the state where the trailer will be registered.  This is a very important safety issue.  For full information contact the appropriate state Motor Vehicle Department.  As always, Load Rite recommends brakes on all axles where available.



Find a dealer
Stainless Brakelines Read More Info

Stainless Brakelines

A valuable upgrade to any trailer, but especially those to see service in coastal regions with salt water exposure.

Find a dealer
Electric Over Hydraulic Brakes Read More Info

Electric Over Hydraulic Brakes

EOH brakes offer electric in-cab control of standard hydraulic disc brakes.  Requires in-cab controller and 7-pin round electrical connection to the tow vehicle.

Find a dealer
Ladder Winch Stand, Steps and Hand Rail Loop Read More Info

Ladder Winch Stand, Steps and Hand Rail Loop

With the popularity of pontoon boats exploding on the marketplace, Load Rite has developed a 4-step ladder winchstand packed with features to make accessing the pontoon deck from the ground easier and safer for everyone.
The bottom step is conveniently located below the top of the tongue, an easy reach for all. Each step is covered with non-skid traction tape to help prevent against slips and falls from wet soles. The curved grab rail provides stability for all ages while climbing steps and transitioning to and from the deck.

Find a dealer
Plastic Bunk Covers Read More Info

Plastic Bunk Covers

These multi-purpose covers provide a smooth surface to help the boat or pontoon to slide easier when launching and loading.  They also offer an insulating barrier to help prevent corrosion for metallic hulled craft.  Protect your aluminum hull.

Highly recommended for metal-hulled boats and pontoon applications.

Find a dealer
2″ by 6″ Bunks Read More Info

2″ by 6″ Bunks

Marine grade carpet over 2″ x 6″ dimensional lumber.

Find a dealer
Inner Guides (2) Read More Info

Inner Guides (2)

Available for all pontoon and tritoon models.

Find a dealer
Inner Guides (4) Read More Info

Inner Guides (4)

Available for all pontoon and tritoon models.

Find a dealer
Load Rite Trailer Drop Tongue Jack Drop-Style Tongue Jack Read More Info
Load Rite Trailer Drop Tongue Jack

Drop-Style Tongue Jack

An upgraded jack that provides greater capacities and fast setup with no need to swivel.

Find a dealer
Load Rite SWING TONGUE Swing Tongue Read More Info
Load Rite SWING TONGUE

Swing Tongue

Applications are limited by trailer capacity and tongue length.  Not available on models exceeding 6,000 lbs. capacity.  Consult with a dealer.

Find a dealer

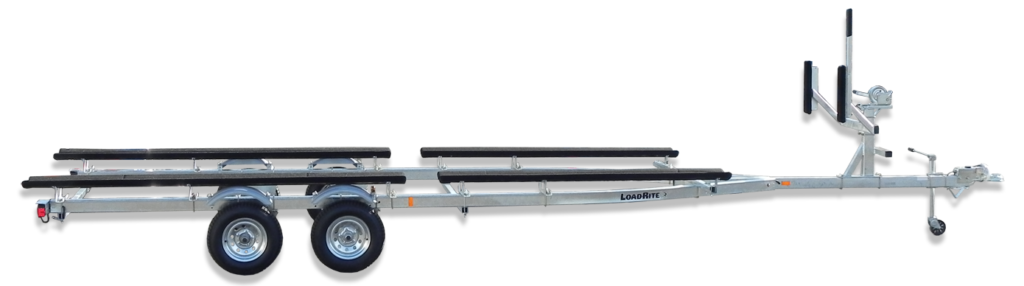

P-TandToonds

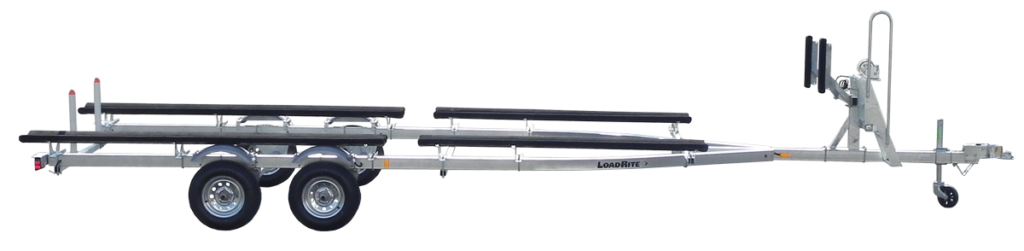

P-22/24T-4100TB1

Shown with optional ladder winchstand and rear inner guides.

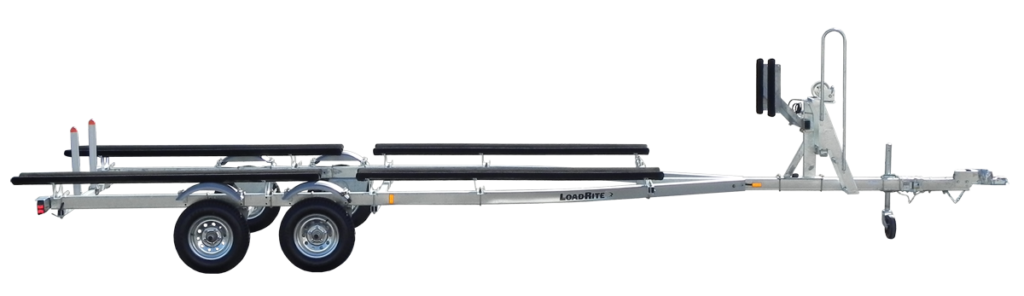

P-20/22T-4100TB1

Shown with optional ladder winchstand, swing tongue, and rear inner guides.

KnottPontoonAxlew

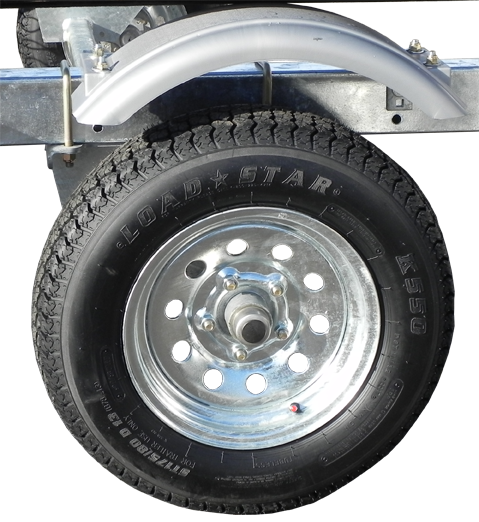

P-Fenderw

Pontoon - rear
