Load Rite Aluminum Single & Tandem Axle Roller

RollerAluminumSingleTandem

Load Rite’s AR roller models feature our patented I-beam frame, which provides exceptional strength and durability in weight-saving, corrosion-resistant aluminum construction. Dedicated gutters protect wiring and brake lines along the length of the frame, while integrated fastener channels for axle and fender mounting minimize unsightly U-bolts straddling the frame.

Our patented Thermal Plasticized Rubber (TPR) rollers are soft and durable to protect hulls from damage, while our roller system also provides the most articulation in the industry for exceptional hull support.

With a wealth of standard features and options, your Load Rite will deliver for you season after season.

All of these features are backed by the industry leading Load Rite 2 + 3 Warranty.

Specifications subject to change without notice.  Not responsible for publishing errors.

MODELS & SPECIFICATIONS
STANDARD FEATURES
OPTIONS
GALLERY
WARRANTY & MANUALS
Find a Dealer

MODELS & SPECIFICATIONS

Share this trailer
Load Rite Aluminum Single & Tandem Axle Roller
MODELCAPACITYBOW EYE TO TRANSOM MAXIMUMBOW EYE TO TRANSOM MINIMUM# OF ROLLERSAXLESBRAKESTIRE SIZEOVERALL WIDTHBETWEEN FENDERSOVERALL LENGTHSpec Sheet
LR-AR182200102T2,20018' 6"14' 1"1610ST175/R13C102"82"21' 4"PDF
LR-AR183100102TB13,10018' 9"14' 5"2011ST215/R14C102"82"22' 3"PDF
LR-AR203100102TB13,10019'17'2011ST215/R14C102"82"21' 9"PDF
LR-AR20T4600102TB14,60019' 17'3221,2ST205/R14C102"82"21' 9"PDF
LR-AR22T5200102TB15,20020' 11"18' 9"4021,2ST205/R14C102"82"25' 1"PDF
LR-AR24T6000102TB16,00023' 5"21' 5"4821,2ST215/R14C102"82"27' 7"PDF
LR-AR26T6000102TB16,00026'23'4821,2ST215/R14C102"82"30'PDF
Patented Aluminum I-Beam Frame Read More Info

Patented Aluminum I-Beam Frame

Patented designs offer many features that add functionality to a great look.  Integrated wire gutter beneath the top flange securely protects wiring and brakelines.  Models to 7,300 lbs. capacity feature a captured fastener channel along the bottom flange offering invisible mounting points for other features.  Web mounted crossbars strengthen the overall frame assembly.

Find a dealer
THERMAL PLASTICIZED ROLLER Load Rite Rollers Read More Info
THERMAL PLASTICIZED ROLLER

Load Rite Rollers

Soft-surface TPR (Thermal Plasticized Rubber) surface for ultimate hull protection rolling on smooth Delrin bushings.  The best roller system for most any hull.

Find a dealer
Fully Articulated TPR Roller System Read More Info

Fully Articulated TPR Roller System

These highly adjustable roller sets feature a smooth rolling core and a soft and supple TPR (Thermo Plasticized Rubber) outer layer that combine to baby a boat’s hull.  The rugged extruded aluminum frame allow the assembly to pivot side to side as well as fore and aft.  The individual roller sets can be adjusted laterally along the main I-beam to custom fit roller position for each hull.

Find a dealer
Radial Tires Read More Info

Radial Tires

Tow smoother, quieter, and farther with radial tires installed on your trailer.  Original equipment on Load Rite Elite 5 STARR models with 13″ and larger wheels except skiff and pontoon models.  Optional on all pontoon and skiff / jon models.  Includes KENDACARE – LOADSTAR TIRE ROADSIDE ASSISTANCE PROGRAM.

Find a dealer
Balanced Wheels 13″ and Larger Read More Info

Balanced Wheels 13″ and Larger

CounterAct Wheel Bead Balancing is now included on all 13″ and larger wheel assemblies as a standard feature.  The wheels dynamically balance during each use.
Visit counteractbalancing.com for more information.

Find a dealer
Torsion Axles Read More Info

Torsion Axles

Torsion axles provide independent suspension, exceptional rigidity, corrosion resistance, and a far superior ride to any leaf spring suspension.  Available on most models.

Find a dealer
Greaseable Hubs Read More Info

Greaseable Hubs

Trailer with peace of mind knowing that you’ve inspected the condition and topped off the lubricant level in each hub of your trailer.

Find a dealer
Disc Brakes (Where Installed) Read More Info

Disc Brakes (Where Installed)

This trailer is equipped with disc brakes (where installed).  Load Rite recommends disc brakes on all wheels where available.  Disc brakes are self-adjusting and self-cleaning and require minimal maintenance in order to continue to deliver top performance.  Follow maintenance tips in your Owners Manual for more detailed instructions.

Find a dealer
Load Rite Optional One Piece Fenders One-piece aluminum fender Read More Info
Load Rite Optional One Piece Fenders

One-piece aluminum fender

Stylish one-piece aluminum diamond-plate fender design is featured on all tandem and triaxle boat trailers.

Find a dealer
Load Rite aluminum fender step Aluminum Fender Steps Read More Info
Load Rite aluminum fender step

Aluminum Fender Steps

Exclusive to the Load Rite Elite LR-AB, LR-AR, and LR-ASKI models.  These steps are ribbed for added grip.

Find a dealer
LED Lighting Read More Info

LED Lighting

LED lights offer far greater reliability than incandescent fixtures.  Long-lasting and waterproof design make these lights ideal for any trailer application.

Find a dealer
Heat-Shrunk Sealed, Concealed Wiring Read More Info

Heat-Shrunk Sealed, Concealed Wiring

Standard equipment on all trailers 17′ and longer except welded frame models.

Find a dealer
PVC Side Guides Read More Info

PVC Side Guides

PVC side guides provide additional guidance when lining up to load on steep ramps.  Standard equipment on many aluminum Load Rite Elite models including LR-AB, LR-ASKI, LR-AR, and LR-AS series.  Optional on most other boat trailers including all 5 STARR models.

Find a dealer
Winch Stand Read More Info

Winch Stand

Standard equipment on all boat and PWC models.  Specifications vary by applicaton.

Find a dealer
Winch Read More Info

Winch

A winch is standard equipment on all boat and PWC models.  Capacity and features vary by application.

Find a dealer
Tongue Jack Read More Info

Tongue Jack

Tongue jacks are standard equipment on all Load Rite Elite models 90″ wide and wider except two-place PWC models, all 5 STARR models, and all UT, EQ, and CH models.  Appearance and specifications vary by application.  Tongue jacks are optional on all other models.

Find a dealer
NMMA / NATM Certified Read More Info

NMMA / NATM Certified

Each year Load Rite trailers undergo a detailed inspection process in order to earn the right to proudly display this certification on products we manufacture.

Find a dealer
2 Plus 3 Years Coupler to Taillight Warranty Read More Info

2 Plus 3 Years Coupler to Taillight Warranty

Load Rite’s premiere warranty exclusive to our Elite line of trailers.

Find a dealer
placeholder KendaCare – LoadStar® Tire Roadside Assistance Program Read More Info
placeholder

KendaCare – LoadStar® Tire Roadside Assistance Program

Click here for more information from Americana Tire.

Find a dealer
Spare Tire and Carrier Read More Info

Spare Tire and Carrier

The most important option to consider, every trailer should have a spare tire readily available.  Consult dealer for recommended bracket for individual application.

Find a dealer
Load Rite Split Star aluminum wheel Aluminum Wheels Read More Info
Load Rite Split Star aluminum wheel

Aluminum Wheels

A stylish option available with bias-ply or radial tires for most models in 12″, 13″, 14″, 15″ and 16″ sizes.

Find a dealer
Second Axle Disc Brakes Read More Info

Second Axle Disc Brakes

Tandem axles only.

Important Safety Issue – Brake Requirements

Brake laws vary by state and require dealers to sell trailers that comply with the brake laws of the state where the trailer will be registered.  This is a very important safety issue.  For full information contact the appropriate state Motor Vehicle Department.  As always, Load Rite recommends brakes on all axles where available.

Find a dealer
Electric Over Hydraulic Brakes Read More Info

Electric Over Hydraulic Brakes

EOH brakes offer electric in-cab control of standard hydraulic disc brakes.  Requires in-cab controller and 7-pin round electrical connection to the tow vehicle.

Find a dealer
Stainless Brakelines Read More Info

Stainless Brakelines

A valuable upgrade to any trailer, but especially those to see service in coastal regions with salt water exposure.

Find a dealer
KODIAK STAINLESS STEEL DISC BRAKES Stainless Steel Disc Brakes Read More Info
KODIAK STAINLESS STEEL DISC BRAKES

Stainless Steel Disc Brakes

Optional stainless steel brakes available for most 14″, 15″ and 16″ wheel applications. Can be used with surge and electric over hydraulic actuators.*

May require optional axle installation.  Check with your local dealer before ordering.

Find a dealer
Carpeted Skirted Fender Read More Info

Carpeted Skirted Fender

Skirted fenders protect the hull finish in two ways.  First, the carpet facing the hull help protect from fender contact while loading and unloading.  Second, it protects the hull from road debris picked up by the tires.  Two valuable precautions for a treasured friend.  Optional on most models with aluminum fenders as standard equipment.

Some models require galvanized fender step to accommodate this option.

Find a dealer
Rubber Fenders Read More Info

Rubber Fenders

Rubber fenders are intended for use on dealer yard trailers.  Yard trailers need the flexibility to adapt to many different hull shapes without imparting any damage in the process.  Rubber fenders minimize the possibility of damage should the fender contact the boat hull.

Find a dealer
Stainless Main Frame Hardware Read More Info

Stainless Main Frame Hardware

Available for most Load Rite Elite LR-AB, LR-ASKI, LR-AR, LR-AS and 5 STARR 5S-AC aluminum models. Includes main frame hardware.  Excludes bunk, roller, winchstand, and coupler / actuator hardware.  Not available for galvanized frame models.

Find a dealer
Load Rite SWING TONGUE Swing Tongue Read More Info
Load Rite SWING TONGUE

Swing Tongue

Applications are limited by trailer capacity and tongue length.  Not available on models exceeding 6,000 lbs. capacity.  Consult with a dealer.

Find a dealer
Load Rite Trailer Drop Tongue Jack Drop-Style Tongue Jack Read More Info
Load Rite Trailer Drop Tongue Jack

Drop-Style Tongue Jack

An upgraded jack that provides greater capacities and fast setup with no need to swivel.

Find a dealer
Independent Bow Stop Read More Info

Independent Bow Stop

Adjustable, galvanized steel, Independent Bow Stop Assembly.  Telescopic post, 2×6″ wooden carpeted wedge pivots to adapt to bow angle.  Mounts to the tongue.  Useful as a forward stop for boats with a high bow, bow pulpit or windlass that could interfere with normal winchstand operation.

Find a dealer

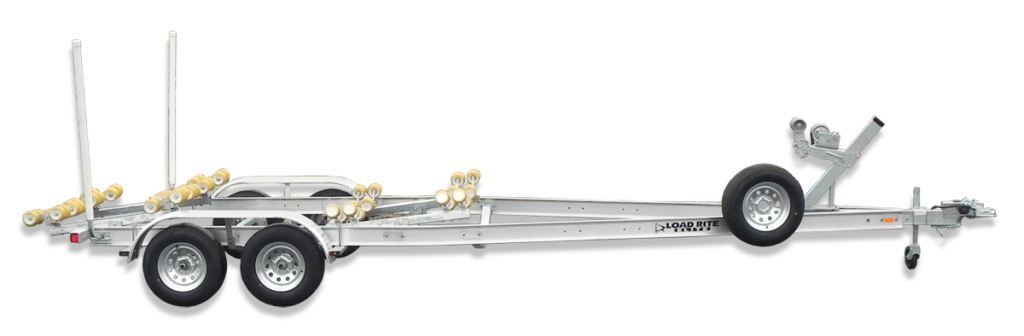

LR-AR24T6000102TB1

Shown with optional spare tire and carrier.

Adjustable I-beam roller assembly

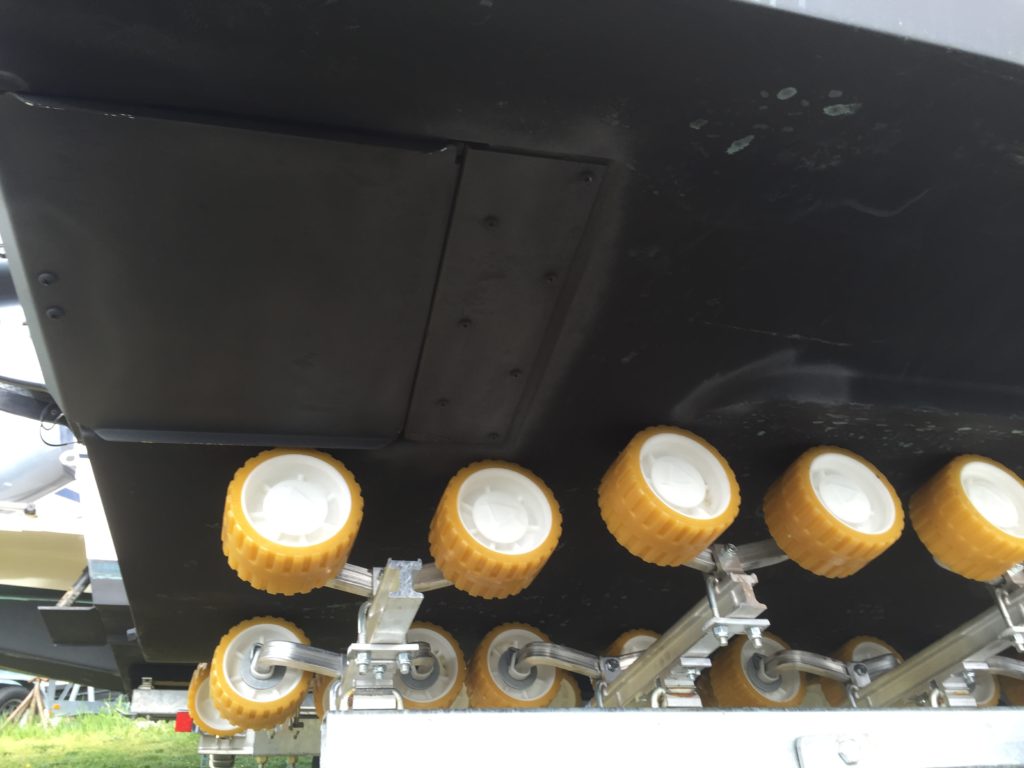

Rollers offset on bracket to avoid trim tab.
